Circuit Board Support 13-6 Series
Circuit Board Support 13-6 Series
SKU:01C-781e3d
Sturdy Circuit Board Support for .093 Thick PCBs & .078-.140 Thick Chassis. RoHS Compliant. Temp Range: -40 to 185°F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Circuit Board Support 13-6 Series
$24.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support 13-6 Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

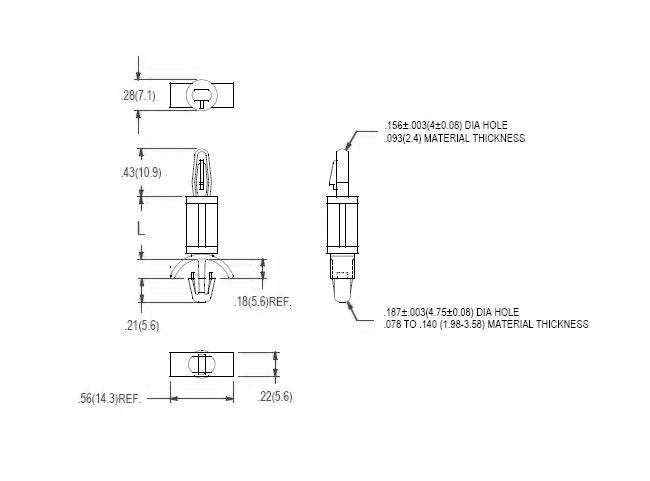

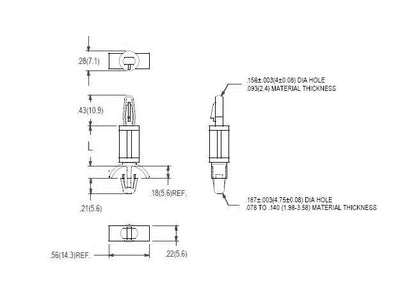

The Circuit Board Support 13-6 Series is designed for securing .093-inch thick PCBs with .078-.140-inch thick chasses, providing stable support for electronic components. Made of Nylon 66 UL94V-2 material with optional UL94V-0 rating, it meets RoHS standards and ASTM D 4066, PA111 requirements. With a temperature range of -40 to 185°F (-40 to 85°C), this support ensures durability and reliability in various environments.
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.078-.140 (1.98-3.58) inches (mm)
Specifications Dim L 015
1.375 (34.9) inches (mm)
