Circuit Board Support - 13-6 Series
Circuit Board Support - 13-6 Series
SKU:01C-1f9aa4
Secure your circuit boards with precision using the Nylon 66 UL94V-2 Circuit Board Support from the 13-6 Series. RoHS compliant and suitable for temperatures -40 to 185F.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Circuit Board Support - 13-6 Series
$49.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support - 13-6 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

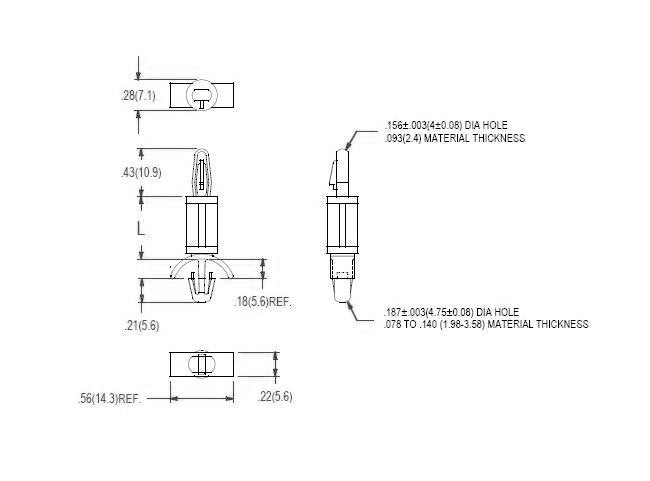

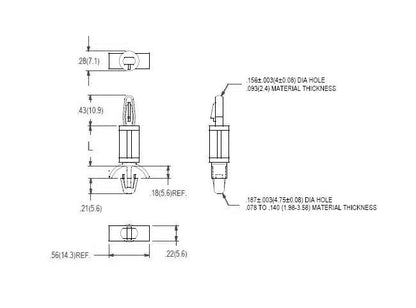

The Circuit Board Support from the 13-6 Series is designed for .093 thick PCBs with a chassis thickness ranging from .078 to .140 inches. Each support is made of Nylon 66 UL94V-2 material, with the option of UL94V-0 available upon request. This pack includes 1000 supports, ensuring your PCBs are securely mounted. Compliant with RoHS regulations, ASTM D 4066, PA111, and UL standards, this product guarantees reliability in temperatures ranging from -40 to 185F (-40 to 85C). Upgrade your circuit board assembly with these precise and durable supports.
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.078-.140 (1.98-3.58) inches (mm)
Specifications Dim L 015
1.00 (25.4) inches (mm)
