Circuit Board Support 13-7 Series
Circuit Board Support 13-7 Series
SKU:01C-c0afe8
Durable Circuit Board Support for .062 Thick PCBs & .031-.078 Thick Chassis. RoHS Compliant with ASTM Standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Circuit Board Support 13-7 Series
$49.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support 13-7 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

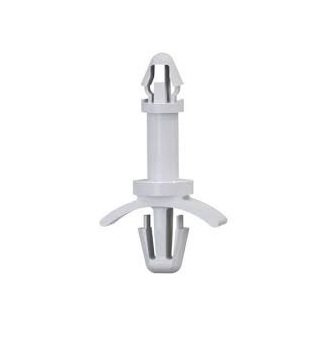

The Circuit Board Support 13-7 Series is designed to securely hold .062-inch thick PCBs with chassis thickness ranging from .031 to .078 inches. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures durability and reliability. It complies with ASTM D 4066, PA111, is RoHS compliant, and has a temperature range of -40 to 185F (-40 to 85C). Each pack contains 1000 supports, making it ideal for bulk orders in electronic assembly projects.
Ready to Grow Without Cash Flow Constraints?

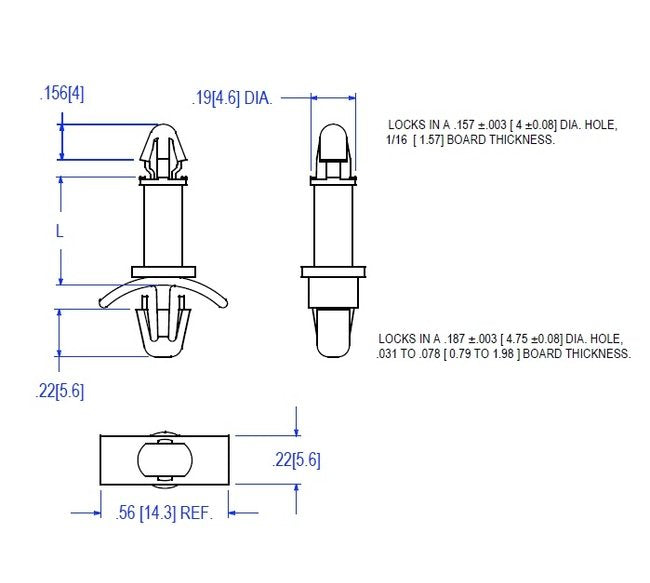

Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.031-.078 (.8-2) inches (mm)
Specifications Dim L 015
.187 (4.8) inches (mm)
