Circuit Board Support 13-8 Series
Circuit Board Support 13-8 Series
SKU:01C-f5e9eb
Secure and protect PCBs with our Circuit Board Support 13-8 Series designed for .062 thick PCBs & .008-.055 thick chassis. RoHS compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Circuit Board Support 13-8 Series
$49.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support 13-8 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

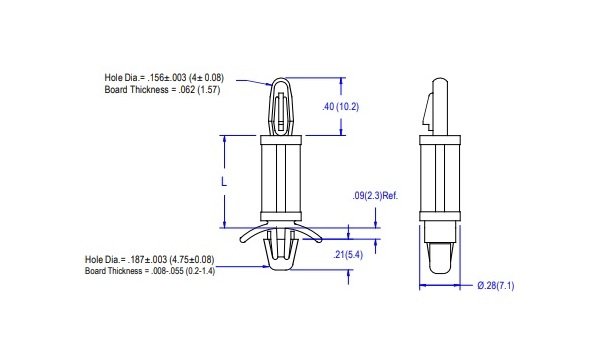

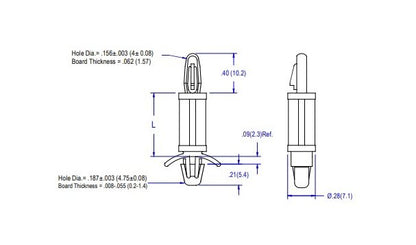

The Circuit Board Support 13-8 Series is designed for securing .062 inch thick PCBs with .008-.055 inch thick chassis. Each pack contains 1000 supports made of Nylon 66 UL94V-2 material. These supports meet ASTM D 4066, PA111 standards, and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), they ensure reliable performance in diverse environments.
Product Specifications
Specifications Board Thickness
.062(1.6) inches (mm)
Specifications Chassis Thickness
.008-.055 (.2-1.4) inches (mm)
Specifications Dim L 015
.625 (15.9) inches (mm)
