Circuit Board Support 13A-2 Series - .062 PCB & .125 Chassis

Name: Circuit Board Support 13A-2 Series - .062 PCB & .125 Chassis
Brand: All Electronics Hardware
SKU: 01C-530d7c
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-530d7c

Secure & reliable Circuit Board Support for .062 PCB & .125 Chassis, RoHS compliant, pack of 500

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

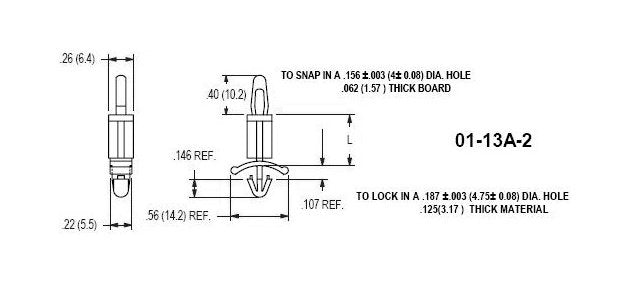

The Circuit Board Support 13A-2 Series is designed for precise fit and stability in supporting .062 thick PCBs and .125 thick chassis. Featuring a non-locking top for easy assembly, these supports snap securely into the PCB and lock firmly into the chassis, ensuring reliability in electronic applications. Constructed from Nylon 66 UL94V-2 material, with UL94V-0 available option, these supports meet RoHS compliance standards and offer a temperature range of -40 to 185F (-40 to 85C). Each pack contains 500 supports, making them ideal for bulk installations in various electronic projects.

Product Specifications

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Thickness

.125 (3.17) inches (mm)

Specifications Dim L 015

1.25 (31.8) inches (mm)
