Circuit Board Support 13A-2 Series for .062 PCB & .125 Chassis
Circuit Board Support 13A-2 Series for .062 PCB & .125 Chassis
SKU:01C-56d8e2
Securely mount .062 PCBs & .125 Chassis with 13A-2 Series Support. Snap Fit design, Nylon 66 UL94V-2 material, RoHS compliant. Temperature range: -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Circuit Board Support 13A-2 Series for .062 PCB & .125 Chassis
$29.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support 13A-2 Series for .062 PCB & .125 Chassis
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

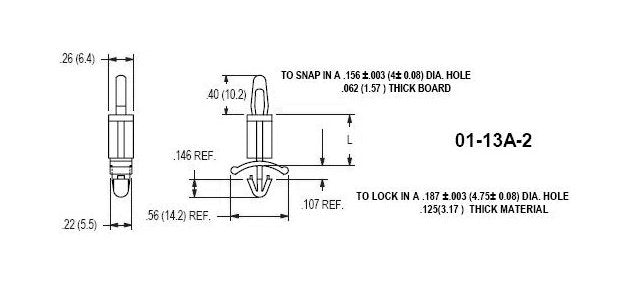

The 13A-2 Series Circuit Board Support is designed for .062-inch thick PCBs and .125-inch thick Chassis for secure mounting and stability. Featuring a Snap Fit design for easy installation into PCBs and locking into Chassis, this support ensures firm placement. Made from Nylon 66 UL94V-2 material, with UL94V-0 available upon request, it meets stringent RoHS standards. With a temperature range of -40 to 185F (-40 to 85C), this support is durable and reliable for various applications. Packaged in quantities of 500 per bag, it offers a cost-effective solution for your circuit board mounting needs.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.312 (7.9) inches (mm)
