Circuit Board Support - 13A Series (.062" PCB/.062" Chassis)
Circuit Board Support - 13A Series (.062" PCB/.062" Chassis)
SKU:01C-8149bf
Sturdy Circuit Board Support for .062 thick PCBs & chassis. Snap-fit & lock design. Nylon 66 UL94V-2 material. RoHS compliant. Temp range: -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Circuit Board Support - 13A Series (.062" PCB/.062" Chassis)
$29.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support - 13A Series (.062" PCB/.062" Chassis)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

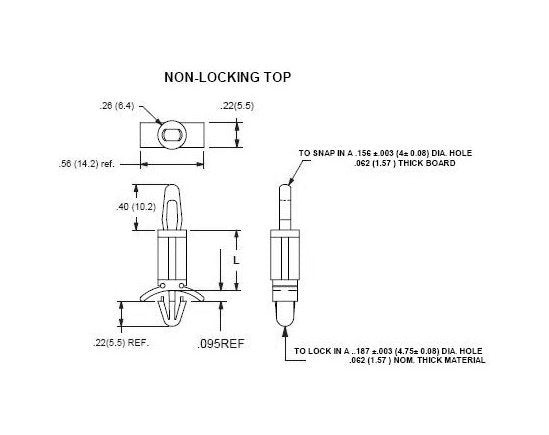

Enhance stability and secure your .062 thick PCBs seamlessly with the 13A Series Circuit Board Support. Designed with precision, these supports feature a .156 Board Hole for a snug fit and a .187 Chassis Hole for added reinforcement. Crafted from high-quality Nylon 66 UL94V-2 material, these supports offer exceptional durability while meeting RoHS compliance standards. With a temperature range of -40 to 185F, they ensure reliable performance in diverse environments. Snap-fit into PCBs and lock securely into chassis to streamline installation processes.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
.750 (19.1) inches (mm)
