Circuit Board Support 13A Series: .156 Board Hole x .187 Chassis Hole
Circuit Board Support 13A Series: .156 Board Hole x .187 Chassis Hole
SKU:01C-0252b0
Upgrade your circuit board assembly with the durable 13A Series PCB Support for secure and reliable installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Circuit Board Support 13A Series: .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support 13A Series: .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

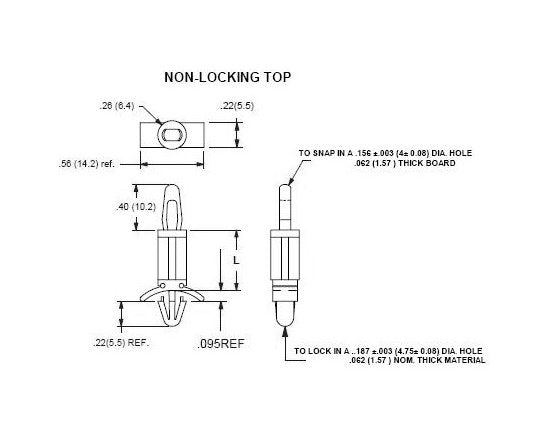

Enhance your circuit board assembly with the 13A Series Circuit Board Support. Designed for .062-inch thick PCBs and chassis, this support ensures secure installation with snap-fit PCB connection and chassis locking feature. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support meets ASTM D 4066, PA111, and RoHS standards. Operating temperature range of -40 to 185F (-40 to 85C) guarantees performance in various environments.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
.500 (12.7) inches (mm)
