Circuit Board Support: 35-2 Series
Circuit Board Support: 35-2 Series
SKU:01C-89a3c9

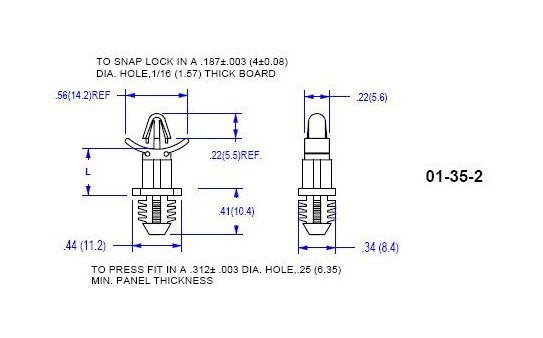

Dependable Circuit Board Support for .062 Thick PCBs, locking into PCBs (.187 hole) and Chassis (.250 min chassis). Nylon 66 UL94V-2 material. ASTM D 4066, RoHS Compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Circuit Board Support: 35-2 Series
$14.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support: 35-2 Series
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Circuit Board Support in the 35-2 Series offers dependable support for PCBs with .062 thickness, locking securely into both PCBs with .187 board holes and chassis with a minimum of .250 thickness. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures stability and durability in temperature ranges from -40 to 185F (-40 to 85C). Compliant with ASTM D 4066 and RoHS standards, this product is essential for maintaining the integrity of electronic assemblies.
Product Specifications
Specifications Dim L 015
.437 (11.1) inches (mm)
