Circuit Board Support: Blind Hole/X-Mass Tree Style - 82-M Series
Circuit Board Support: Blind Hole/X-Mass Tree Style - 82-M Series
SKU:01C-852bec
Enhance PCB assembly with 82-M Series Circuit Board Support: Blind Hole/X-Mass Tree Style. Securely mounts PCBs on .312 Mtg Hole with .250 Minimum Thick Chassis.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Circuit Board Support: Blind Hole/X-Mass Tree Style - 82-M Series
$49.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support: Blind Hole/X-Mass Tree Style - 82-M Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

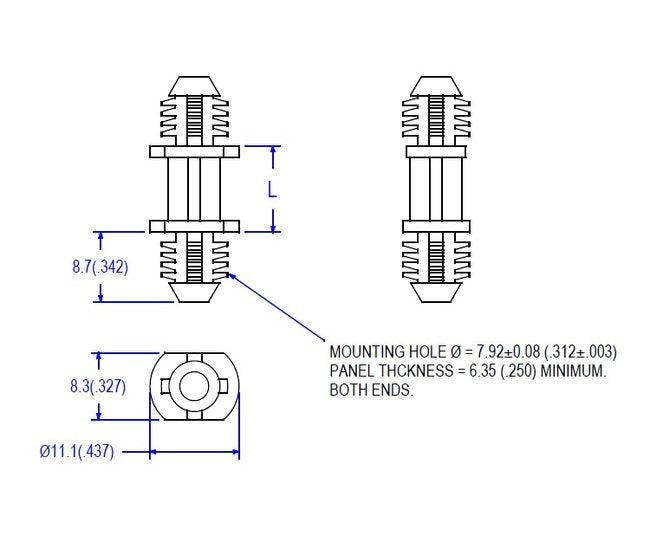

Enhance your PCB assembly with the 82-M Series Circuit Board Support offering a Blind Hole/X-Mass Tree Style design. This support is designed for a .312 Mtg Hole on a .250 Minimum Thick Chassis, ensuring secure mounting and stability. Each package contains 1000 supports made of Nylon 66 UL94V-2 material (UL94V-0 available). These supports comply with UL File No: E41938, ASTM D 4066, PA111, and are RoHS compliant, offering a temperature range of -40 to 185F (-40 to 85C). Upgrade your circuit board setup with these reliable and durable supports.
Product Specifications
Specifications Dim L 015
.393 (10) inches (mm)
