Circuit Board Support Bracket - Nylon 66
Circuit Board Support Bracket - Nylon 66
SKU:01C-2193f0
Sturdy Circuit Board Support Bracket for .062 PCB & .008-.055 Chassis, Nylon 66 Material, ASTM & RoHS Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Circuit Board Support Bracket - Nylon 66
$29.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support Bracket - Nylon 66
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

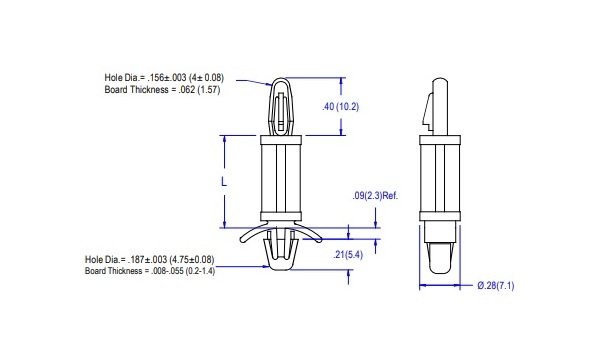

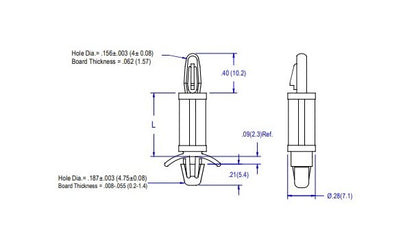

The 13-8 Series Circuit Board Support Bracket is designed for superior stability and durability in supporting .062 thick PCBs and .008-.055 thick chassis. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these brackets ensure reliable positioning of circuit boards. Compliant with ASTM D4066 and RoHS standards, featuring a temperature range of -40 to 185F (-40 to 85C), this product is ideal for applications requiring precision and quality.
Product Specifications
Specifications Board Thickness
.062(1.6) inches (mm)
Specifications Chassis Thickness
.008-.055 (.2-1.4) inches (mm)
Specifications Dim L 015
1.375 (34.9) inches (mm)
