Circuit Board Support for .062 PCB x .125 Chassis, Nylon 66 UL94V-2, 500/bag
Circuit Board Support for .062 PCB x .125 Chassis, Nylon 66 UL94V-2, 500/bag
SKU:01C-66db98
Securely support .062 PCB x .125 Chassis with Nylon 66 UL94V-2. RoHS compliant, 500/bag.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Circuit Board Support for .062 PCB x .125 Chassis, Nylon 66 UL94V-2, 500/bag
$29.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support for .062 PCB x .125 Chassis, Nylon 66 UL94V-2, 500/bag
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

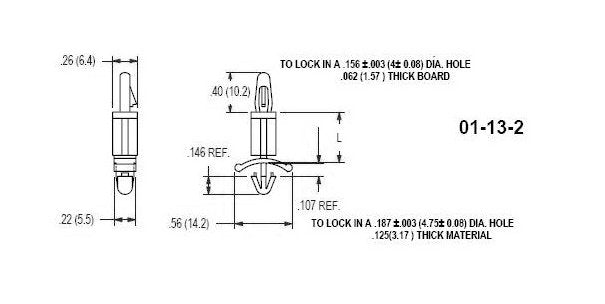

The 13-2 Series Circuit Board Support is designed for .062-inch thick PCBs and .125-inch thick chassis, ensuring a secure lock fit into both PCB and chassis components. Made of Nylon 66 UL94V-2 material, this product is RoHS compliant and offers a temperature range from -40 to 185F for versatile application. Each package contains 500 durable supports, providing reliable support for your circuit board assembly needs, with the option for UL94V-0 material upon request.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.250 (6.4) inches (mm)
