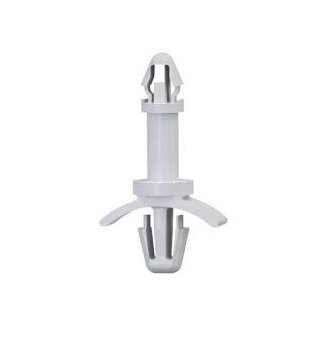

Circuit Board Support for .062 Thick PCB with .031-.078 Thick Chassis

Name: Circuit Board Support for .062 Thick PCB with .031-.078 Thick Chassis
Brand: All Electronics Hardware
SKU: 01C-450058
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-450058

Securely hold .062 thick PCBs with .031-.078 thick chassis. Nylon 66 material, RoHS compliant, UL94V-2 standard. Pack of 1000.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

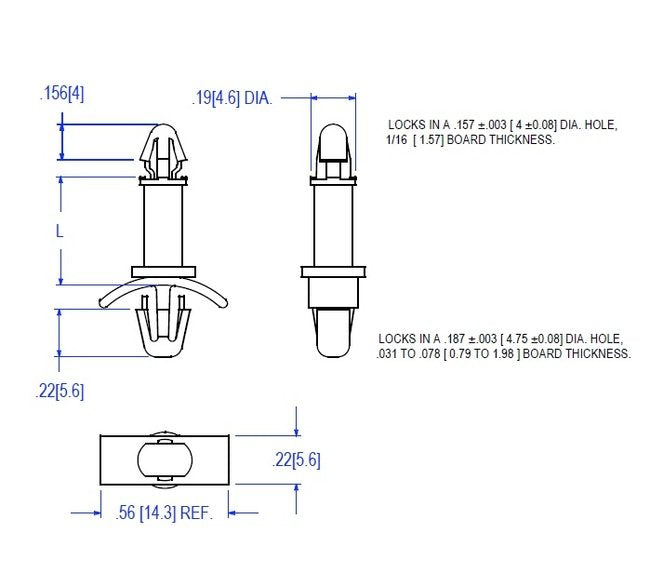

The 13-7 Series Circuit Board Support is designed to securely hold .062 thick PCBs with a chassis thickness ranging from .031 to .078 inches. Made of Nylon 66 UL94V-2 material, this support meets ASTM D 4066 and PA111 standards. It is RoHS compliant and offers a temperature range of -40 to 185F (-40 to 85C). Each pack contains 1000 supports, ensuring cost-effective application in various electronic assemblies. Upgrade to UL94V-0 by adding 'X' to the part number for enhanced fire safety.

Product Specifications

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Thickness

.031-.078 (.8-2) inches (mm)

Specifications Dim L 015

.625 (15.9) inches (mm)
