Circuit Board Support Locking Mini .125 Board Hole x .125 Chassis Hole
Circuit Board Support Locking Mini .125 Board Hole x .125 Chassis Hole
SKU:01C-7bfb40
Reliable Circuit Board Support with .125 Board Hole x .125 Chassis Hole, Nylon 66 UL94V-2 material, RoHS Compliant, -40 to 185F Temp Range
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Circuit Board Support Locking Mini .125 Board Hole x .125 Chassis Hole
$12.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support Locking Mini .125 Board Hole x .125 Chassis Hole
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

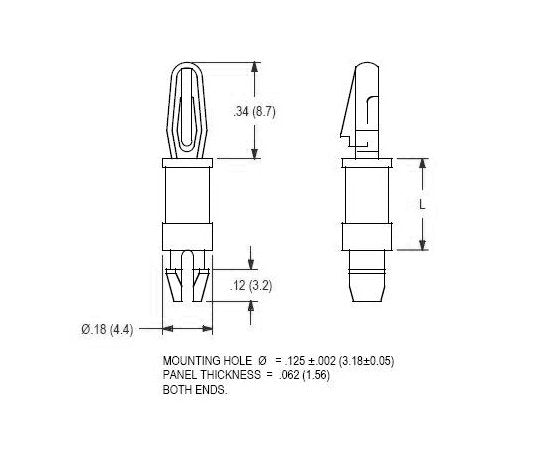

The Circuit Board Support Locking Mini is designed specifically for use in securing circuit boards, providing a reliable and releasable attachment. Crafted from Nylon 66 UL94V-2 material (UL94V-0 option available), ensuring durability and safety. With a temperature range of -40 to 185F (-40 to 85C), it offers versatility in various environments. Each support features a .125-inch board hole and .125-inch chassis hole, with a panel thickness of .062 inches, ensuring a snug fit and stability for your circuitry. Compliant with RoHS standards for environmentally friendly operations.
Product Specifications
Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.562 (14.3) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Same Both Ends
