Circuit Board Support - Nylon 66 Reverse Locking 33 Series
Circuit Board Support - Nylon 66 Reverse Locking 33 Series
SKU:01C-de4808
Secure and durable Nylon 66 Circuit Board Support - RoHS compliant, ASTM D 4066, PA111 - Pack of 1000
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Circuit Board Support - Nylon 66 Reverse Locking 33 Series
$29.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support - Nylon 66 Reverse Locking 33 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

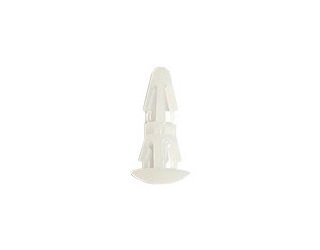

The Circuit Board Support - Nylon 66 Reverse Locking 33 Series offers secure and reliable support for circuit boards in various applications. Made of UL94V-2 rated Nylon 66, this support ensures durability and safety. With a natural color and a temperature range of -40 to 185 ºF, it meets ASTM D 4066, PA111, and RoHS compliance. Each bag contains 1000 supports, suitable for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

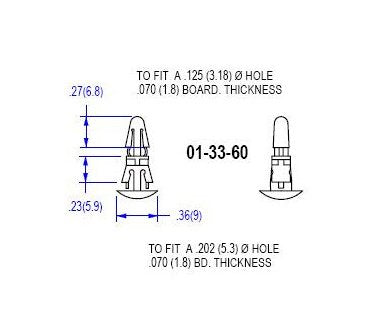

Specifications Board Hole Diameter
0.125 in | 3.2 mm
Specifications Board Thickness
0.062 in | 1.6 mm
Specifications Chassis Hole Diameter
0.197 in | 5.0 mm
Specifications Chassis Thickness
0.02 to 0.070 in | 0.5 to 1.8 mm
Specifications Color
Natural
Specifications Dimension Hd
0.358 in | 9.1 mm
Specifications Dimension L
0.250 in | 6.4 mm
Specifications Industry Standards
ASTM: D 4066, PA111 | RoHS Compliant | UL File No: E70062
Specifications Material
Nylon 66
Specifications Material Code
UL94V-2
Specifications Packaging Per Bag
1000
Specifications Temperature
-40 to 85 ºC | -40 to 185 ºF
