Circuit Board Support - Nylon 66 UL94V-2, .062 Thick PCB, 500/bag

Name: Circuit Board Support - Nylon 66 UL94V-2, .062 Thick PCB, 500/bag
Brand: All Electronics Hardware
SKU: 01C-647a80
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-647a80

Securely mount .062 thick PCBs with our Nylon 66 UL94V-2 Circuit Board Support. Snap-fit design, RoHS compliant, and temp-resistant (-40 to 185F). Pack of 500.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

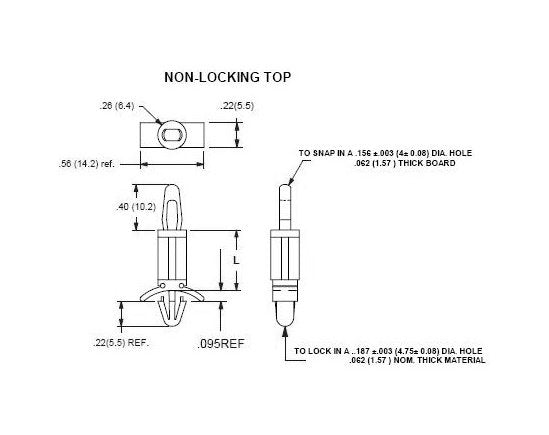

The 13A Series Circuit Board Support is designed to securely fit .062 thick PCBs and chassis, offering reliable snap-fit installation for stability. Crafted from Nylon 66 UL94V-2 material with RoHS compliance, this support is temperature-resistant (-40 to 185F) for versatile applications. The non-locking top design with a .156 board hole and .187 chassis hole ensures easy assembly with a precise fit. Each package includes 500 supports, providing cost-effective solutions for circuit board mounting requirements.

Product Specifications

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Chassis Thickness

.062 (1.57) inches (mm)

Specifications Dim L 015

.437 (11.1) inches (mm)

Circuit Board Support - Nylon 66 UL94V-2, .062 Thick PCB, 500/bag
