Circuit Board Support - Nylon 66 UL94V-2, 13-2 Series

Name: Circuit Board Support - Nylon 66 UL94V-2, 13-2 Series
Brand: All Electronics Hardware
SKU: 01C-9635b7
Price: 59.99 USD
Availability: OutOfStock

SKU:01C-9635b7

Durable Circuit Board Support for .062 PCB & .125 Chassis. RoHS compliant, Nylon 66 UL94V-2 material. Temp range -40 to 185F.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

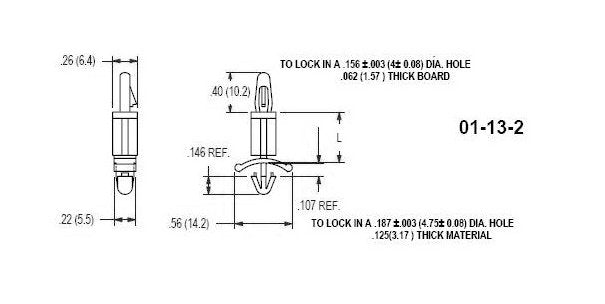

The 13-2 Series Board Support is designed for .062 thick PCBs and .125 thick chassis, ensuring a secure lock fit for your electronic assemblies. Made of Nylon 66 UL94V-2 material with UL File No E70062, this support is RoHS compliant and offers a temperature range of -40 to 185F. It comes in a convenient packaging of 500 pieces per bag, meeting ASTM D 4066 and PA111 standards for durability and reliability.

Product Specifications

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Thickness

.125 (3.17) inches (mm)

Specifications Dim L 015

1.12 (28.6) inches (mm)

Circuit Board Support - Nylon 66 UL94V-2, 13-2 Series
