Circuit Board Support on Adhesive Base - 15 Series
Circuit Board Support on Adhesive Base - 15 Series
SKU:01C-744492
Enhance circuit board stability with the 15 Series. Nylon 66 UL94V-2 material, .125in mounting hole, RoHs compliant, ASTM D 4066, PA111, Temp Range: -40 to 185F
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Circuit Board Support on Adhesive Base - 15 Series
$39.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support on Adhesive Base - 15 Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your circuit board stability with the 15 Series Circuit Board Support on Adhesive Base. Made from durable Nylon 66 UL94V-2 material, this support offers a secure mount with a .125 ± .010 inches (3.2mm) mounting hole diameter. With a board thickness of .062 ± .010 inches (1.57mm), it provides reliable support for your circuit boards. It complies with RoHs standards, has a temperature range of -40 to 185F (-40 to 85C), and meets ASTM D 4066, PA111 requirements. Each pack contains 500 supports, making it ideal for bulk installations.

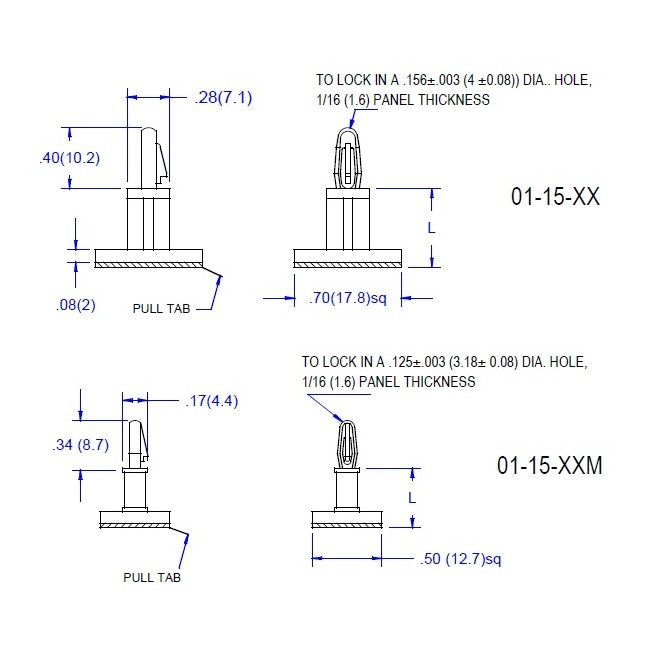

Product Specifications
Specifications Board Thickness
.062 ± .010 (1.57) inches (mm)
Specifications Dim L
.312 ± .015 (7.9) inches (mm)
Specifications Material Code
UL94V-2
Specifications Mounting Hole Diameter
.125 ± .010 (3.2) inches (mm)
