Circuit Board Support on Adhesive Base - 63 Series
Circuit Board Support on Adhesive Base - 63 Series
SKU:01C-35196f
Enhance circuit board stability with the 63 Series: .156 Board Hole x Adhesive Base. RoHS compliant & durable. Packaged conveniently.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Circuit Board Support on Adhesive Base - 63 Series
$29.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support on Adhesive Base - 63 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

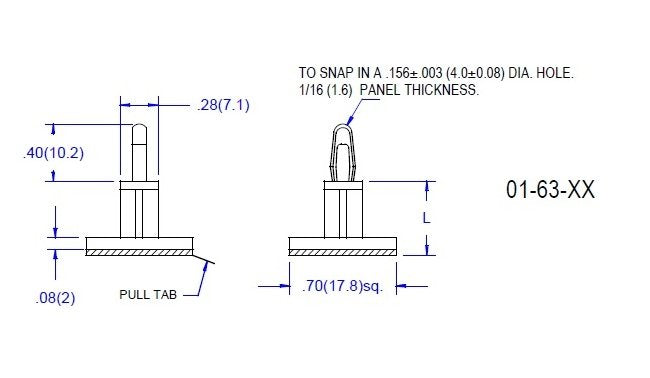

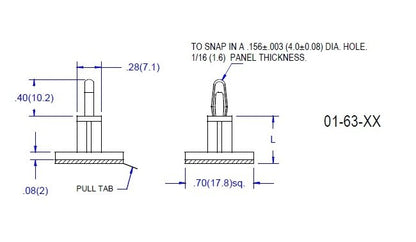

Enhance your circuit board stability with the 63 Series Circuit Board Support on Adhesive Base. Designed for .156 Board Hole compatibility, this support features a non-locking mechanism, RoHS compliance, and a temperature range of -40 to 185F (-40 to 85C). Made from Nylon 66 UL94V-2 material, this support meets ASTM D 4066 and PA111 standards, ensuring reliable circuit board installation with a natural finish. With a dimension of .875 inches (22.3 mm), this support comes in packaging of 500 units per bag for convenience and efficiency.
Product Specifications
Specifications Dim L
.875 (22.3) inches (mm)
