Circuit Board Support Set for .062 PCB & .008-.055 Chassis - 13-8 Series

Name: Circuit Board Support Set for .062 PCB & .008-.055 Chassis - 13-8 Series
Brand: All Electronics Hardware
SKU: 01C-852511
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-852511

Boost your electronics projects with the 13-8 Series Circuit Board Support Set - ideal for .062 PCBs & .008-.055 Chassis. RoHS compliant & durable.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your electronics projects with the 13-8 Series Circuit Board Support Set designed for .062-inch thick PCBs and .008-.055-inch thick chassis. Each set includes 1000 supports made of Nylon 66 UL94V-2 material (UL94V-0 optional). With ASTM D 4066 and PA111 certifications, these supports are RoHS compliant, ensuring safety and quality. The supports offer a temperature range of -40 to 185°F (-40 to 85°C), providing durability in various environments.

Product Specifications

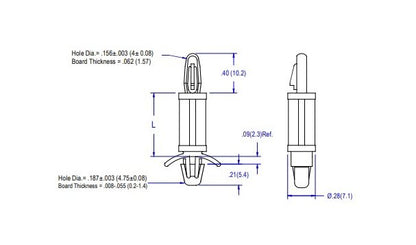

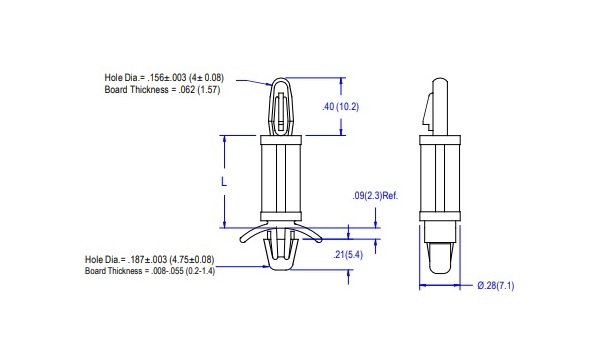

Specifications Board Thickness

.062(1.6) inches (mm)

Specifications Chassis Thickness

.008-.055 (.2-1.4) inches (mm)

Specifications Dim L 015

.187 (4.8) inches (mm)
