Circuit Board Supports - .062 Board Thick x .125 Chassis Thick - Nylon 66 UL94V-2

Name: Circuit Board Supports - .062 Board Thick x .125 Chassis Thick - Nylon 66 UL94V-2
Brand: All Electronics Hardware
SKU: 01C-a11944
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-a11944

Securely lock and stabilize .062 thick PCBs and .125 thick chassis with Nylon 66 UL94V-2 Circuit Board Supports. RoHS compliant & ASTM tested.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

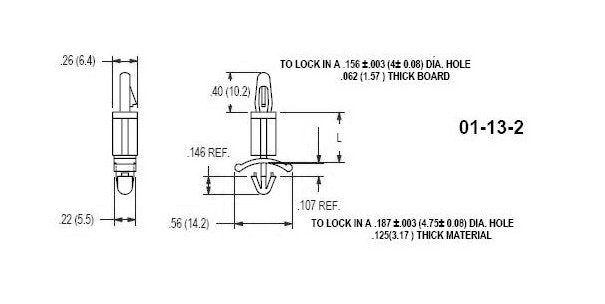

The 13-2 Series Circuit Board Supports are designed for .062 inches thick PCBs and .125 inches thick chassis, ensuring a secure lock fit for both components. Manufactured with Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D 4066 and PA111 standards. RoHS compliant and capable of withstanding temperatures ranging from -40 to 185F (-40 to 85C), these supports offer reliable board stabilization and protection. Each pack contains 500 supports, making them ideal for bulk use in various applications.

Product Specifications

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Thickness

.125 (3.17) inches (mm)

Specifications Dim L 015

.500 (12.7) inches (mm)

Circuit Board Supports - .062 Board Thick x .125 Chassis Thick - Nylon 66 UL94V-2
