Circuit Board Supports - .156 Board Hole x .187 Chassis Hole (11 & 34 Series)

Name: Circuit Board Supports - .156 Board Hole x .187 Chassis Hole (11 & 34 Series)
Brand: All Electronics Hardware
SKU: 01C-a7c06f
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-a7c06f

Secure and durable Circuit Board Supports for easy installation and repairs. RoHS Compliant with ASTM D 4066, PA111 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Circuit Board Supports in the 11 & 34 Series offer easy hand installation with a secure snap or lock mechanism for board stability. Made with Nylon 66 UL94V-2 material (UL94V-0 available), these supports are releasable for repairs. With ASTM D 4066 and PA111 compliance, these supports are RoHS Compliant and can withstand temperatures ranging from -40 to 185F. Packaging includes 500 supports per bag, ensuring convenience and efficiency in your operations.

Product Specifications

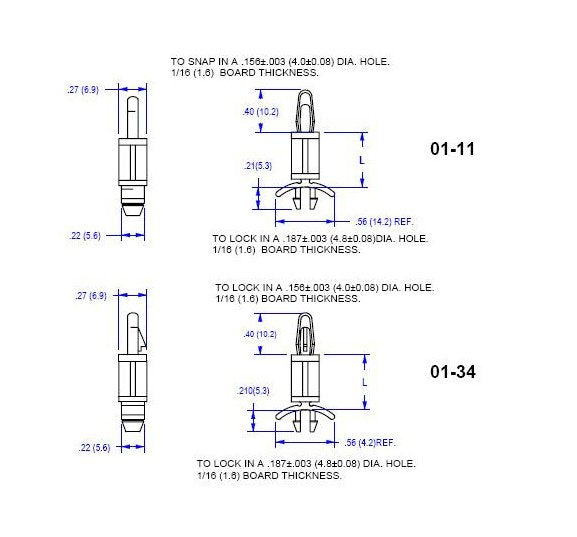

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L 015

.563 (14.3) inches (mm)

Specifications Material Code

UL94V-2
