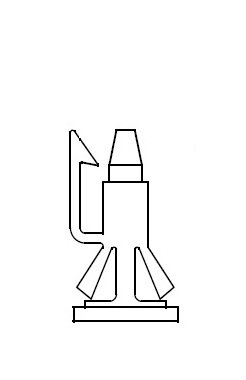

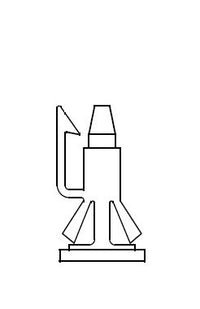

Circuit Board Supports: Edge Mount x .156 PCB Hole with Square Hole Chassis Mount
Circuit Board Supports: Edge Mount x .156 PCB Hole with Square Hole Chassis Mount
SKU:01C-8de3e5
Premium Circuit Board Supports for edge mounting on .156 PCB holes, RoHS compliant, 1000/bag
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Circuit Board Supports: Edge Mount x .156 PCB Hole with Square Hole Chassis Mount
$59.99
Quantity: 1
Claim Your Seller Account
Circuit Board Supports: Edge Mount x .156 PCB Hole with Square Hole Chassis Mount
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Circuit Board Supports from our 79 Series are expertly designed for edge mounting on circuit boards with a .156 PCB hole and square hole chassis mount compatibility. Constructed from high-quality Nylon 66 UL94V-2 material (UL94V-0 available), these supports offer exceptional durability and reliability. They come in a sleek black color and meet stringent industry standards such as ASTM D 4066 and PA111. RoHS compliant and featuring a temperature range of -40 to 185F (-40 to 85C), these supports provide secure and stable mounting solutions for your electronic components. Each pack contains 1000 supports, ensuring you have an ample supply for your projects.
Product Specifications

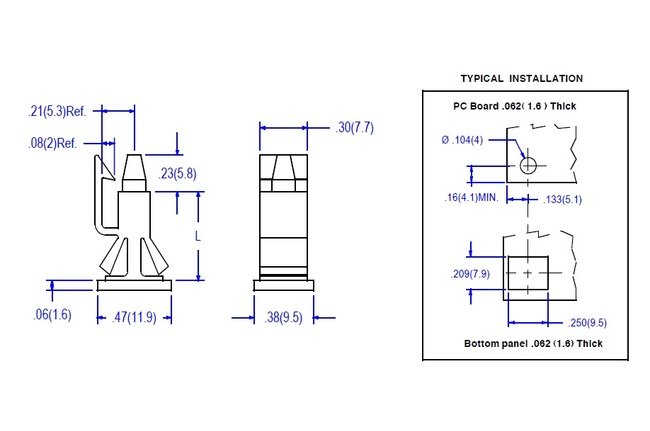

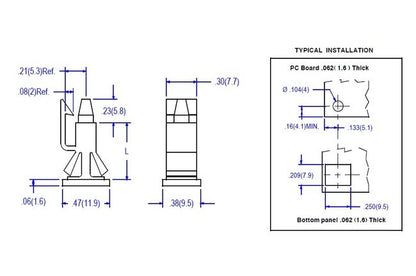

Specifications Dim L In 015 Mm 4
.375 (9.5) inches (mm)
