Clark Remanufactured Hydraulic & Power Steering Pump
Clark Remanufactured Hydraulic & Power Steering Pump
SKU:LII-eb487e
Premium reconditioned clutch pump for optimal hydraulic performance.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Clark Remanufactured Hydraulic & Power Steering Pump
$289.99
Quantity: 1
Claim Your Seller Account
Clark Remanufactured Hydraulic & Power Steering Pump
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Clark Remanufactured Hydraulic & Power Steering Pump is a top-quality, reconditioned clutch pump designed to meet all original specifications. Remanufactured with precision, it ensures optimal performance and durability. Perfect for applications requiring reliable hydraulic components.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Li'I CRITTER⢠High-Pressure Gas Compressors are ideally suited for:Hot isostatic pressingPneumatic testingChemical processingSupercritical extractionGas circulationInstrument calibrationMany other applications that require clean gas
Features 0

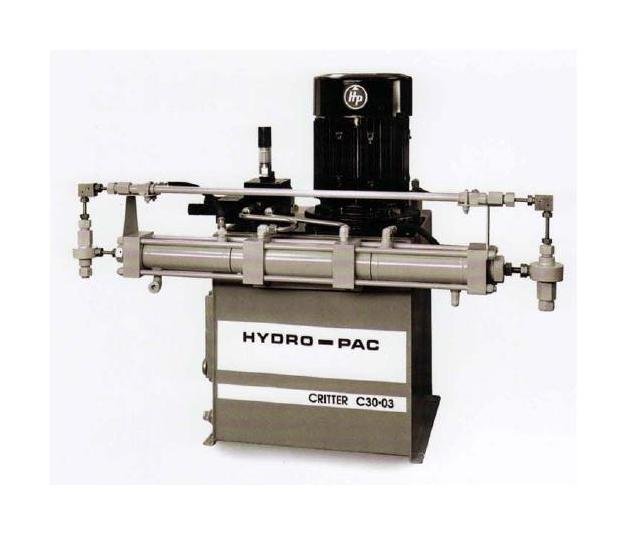

Hydro-Pac Li'I CRITTER⢠High- Pressure Gas Compressors feature:Oil-free nonlubricated gas cylinders minimize the chance of contamination.Long slow stroke results in longer packing and check valve life.Reversible valve seats allow use of both sides prior to seat replacement.Efficient operation does not require plant air.Lii CRITTER⢠compressors may be started under full load.Water-cooled cylinders and interstage cooler lower operating and gas temperatures and increase seal life.Pressure compensated gas piston seals adjust automatically for wear.Compact self-contained machine requires minimum space.Auto-Shift design ensures smooth and reliable cycling of the intensifier without electrical switches.The 7.5 hp Liâl CRITTER⢠Compressor incorporates an advanced hydraulic system. Flow is adjusted according to load resulting in greater overall capacity.
Freedom From Contamination 0
An isolation chamber ensures segregation of the compressed gas from the hydraulic fluid.For applications requiring ultra-pure gas, optional full-length isolation spacers are available that do not allow entry of the oil wetted portion of the plunger rod into the gas cylinder.

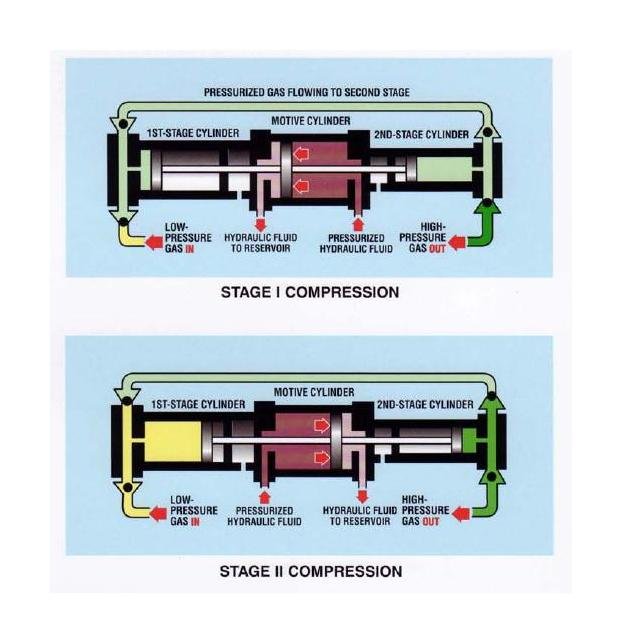

How Lii Critter Compressors Work 0
Two-Stage Compressors compress the gas in a two-step process. The larger diameter first-stage cylinder pumps gas to an intermediate pressure in the smaller diameter second-stage cylinder.The second-stage cylinder then pumps the gas out of the intensifier to the final pressure. During this portion of the compression process, the first-stage cylinder tills with gas at inlet conditions.The cycle repeats automatically.
Manufacturing Notes 0
Capacity curves and operating envelopes are available upon request.
Optional Equipment 0
Spare-parts kitMotor starterPressure gauges for suction, interstage and dischargeAftercoolerCoolant-flow sensorOil reservoir heaterExplosion-proof motor
Patented Free Piston Design 0
LiâI CRITTER⢠Compressors feature Hydro-Pac's patented free-piston design. This exclusive feature allows replacement of all high- pressure seals in just a few minutes without major disassembly of the intensifier.
Specifications Dimension A
16.75 in | 425 mm
Specifications Dimension B
38.5 in | 980 mm
Specifications Dimension C
35 in | 890 mm
Specifications Dimension D
15 in | 380 mm
Specifications Dimension E
20 in | 510 mm
Specifications Discharge Connection Sizes
1/4 x .083 in (High Pressure)
Specifications Discharge Connection Type
FC250C
Specifications Discharge Pressure
45000 psi | 310 MPa
Specifications Inlet Connection Sizes
1/4 in FNPT
Specifications Options Available For Compressing
HydrogenEthyleneOther gases
Specifications Power
3 hp | 2.25 kW
Specifications Reservoir Volume
10 gal | 40 L
Specifications Weight
200 lb | 90 kg
Standard Equipment 0
Hydro-Pac Li'I CRITTER⢠High- Pressure Gas Compressors are furnished as complete units.Gas intensifier with inlet, interstage and discharge check valvesElectric motor 230/460 V, 3 Phase, 60 Hz, TEFCHydraulic power unit with pump, directional control valve and filtersInterstage over-pressure protection deviceInstruction manual
Standard Gases 0
ArgonNitrogenHeliumCarbon dioxideDry airMixtures of 20 % oxygen and other inert gasMethaneOther inert gases
Utilities 0
Electrical:230/460 V, 3 phase, 60 Hz (Other voltages available)Coolant:90 ºF maximum, 0.25 gpm/hp (30 ºC maximum, 1.25 Lpm/kW)
