Clark Remanufactured Hydraulic & Power Steering Pumps
Clark Remanufactured Hydraulic & Power Steering Pumps
SKU:LII-ad2bd6
Upgrade your hydraulic system with precision-engineered Clark Remanufactured Pumps.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Clark Remanufactured Hydraulic & Power Steering Pumps
$299.99
Quantity: 1
Claim Your Seller Account
Clark Remanufactured Hydraulic & Power Steering Pumps
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your hydraulic system with the Clark Remanufactured Hydraulic & Power Steering Pumps. Expertly rebuilt to meet original manufacturer specifications, our pumps deliver reliability and performance. Ideal for both consumer and institutional buyers seeking top-quality components for their equipment.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Li'I CRITTER⢠High-Pressure Gas Compressors are ideally suited for:Hot isostatic pressingPneumatic testingChemical processingSupercritical extractionGas circulationInstrument calibrationMany other applications that require clean gas
Features 0
Hydro-Pac Li'I CRITTER⢠High- Pressure Gas Compressors feature:Oil-free nonlubricated gas cylinders minimize the chance of contamination.Long slow stroke results in longer packing and check valve life.Reversible valve seats allow use of both sides prior to seat replacement.Efficient operation does not require plant air.Lii CRITTER⢠compressors may be started under full load.Water-cooled cylinders and interstage cooler lower operating and gas temperatures and increase seal life.Pressure compensated gas piston seals adjust automatically for wear.Compact self-contained machine requires minimum space.Auto-Shift design ensures smooth and reliable cycling of the intensifier without electrical switches.The 7.5 hp Liâl CRITTER⢠Compressor incorporates an advanced hydraulic system. Flow is adjusted according to load resulting in greater overall capacity.
Freedom From Contamination 0
An isolation chamber ensures segregation of the compressed gas from the hydraulic fluid.For applications requiring ultra-pure gas, optional full-length isolation spacers are available that do not allow entry of the oil wetted portion of the plunger rod into the gas cylinder.

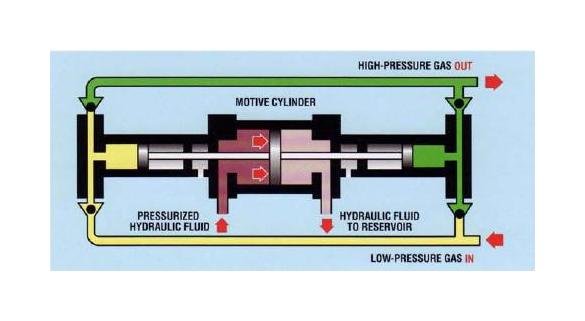

How Lii Critter Compressors Work 0
Single-Stage Compressors discharge gas with every stroke. As one cylinder displaces gas, the cylinder on the opposite side fills with gas. At the end of the stroke, the gas pistons reverse direction and strokes in the opposite direction.The cycle repeats automatically.
Manufacturing Notes 0
Capacity curves and operating envelopes are available upon request.
Optional Equipment 0
Spare-parts kitMotor starterPressure gauges for suction, interstage and dischargeAftercoolerCoolant-flow sensorOil reservoir heaterExplosion-proof motor
Patented Free Piston Design 0
LiâI CRITTER⢠Compressors feature Hydro-Pac's patented free-piston design. This exclusive feature allows replacement of all high- pressure seals in just a few minutes without major disassembly of the intensifier.
Specifications Dimension A
33 in | 840 mm
Specifications Dimension B
45.5 in | 1155 mm
Specifications Dimension C
31 in | 790 mm
Specifications Dimension D
17 in | 430 mm
Specifications Dimension E
24 in | 610 mm
Specifications Discharge Connection Sizes
3/8 x .125 in (High Pressure)
Specifications Discharge Connection Type
FC375C
Specifications Discharge Pressure
30000 psi | 210 MPa
Specifications Inlet Connection Sizes
1/2 in FNPT
Specifications Options Available For Compressing
HydrogenEthyleneOther gases
Specifications Power
7.5 hp | 5.6 kW
Specifications Reservoir
20 gal | 75 L
Specifications Weight
800 lb | 365 kg
Standard Equipment 0
Hydro-Pac Li'I CRITTER⢠High- Pressure Gas Compressors are furnished as complete units.Gas intensifier with inlet, interstage and discharge check valvesElectric motor 230/460 V, 3 Phase, 60 Hz, TEFCHydraulic power unit with pump, directional control valve and filtersInterstage over-pressure protection deviceInstruction manual
Standard Gases 0
ArgonNitrogenHeliumCarbon dioxideDry airMixtures of 20% Oxygen and other inert gasMethaneOther inert gases
Utilities 0
Electrical:230/460 V, 3 phase, 60 Hz (Other voltages available)Coolant:90 ºF maximum, 0.25 gpm/hp (30 ºC maximum, 1.25 Lpm/kW)
