Clark Remanufactured Power Steering Orbitrols
Clark Remanufactured Power Steering Orbitrols
SKU:FIL-2e9ef0
Enhance steering performance with our Clark Remanufactured Power Steering Orbitrols. Reliable, responsive, and durable for all vehicles.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Clark Remanufactured Power Steering Orbitrols
$299.99
Quantity: 1
Claim Your Seller Account
Clark Remanufactured Power Steering Orbitrols
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your vehicle's steering performance with our Clark Remanufactured Power Steering Orbitrols. Meticulously reconditioned to meet exact manufacturer specifications, these orbitrols offer reliable and responsive steering control. Designed for both consumer and institutional vehicle applications, our remanufactured orbitrols ensure smooth operation and durability. Upgrade your steering system with confidence in quality and performance.
Product Specifications
Benefits 0
Easier Installations Due to True Union Connectivity Simplified Bag Removal From Hinged Basket Vertical Flow Flutes in Basket, No Bag Snag and More Flow Area
Materials 0
GFPP Cell Class 85580 per ASTM D4101 FPM Standard O-Ring Seals
Options 0
Gauge with Gauge Guard Pressure Differential Gauge and Switch EPDM O-Ring Seals Cartridge Adapters

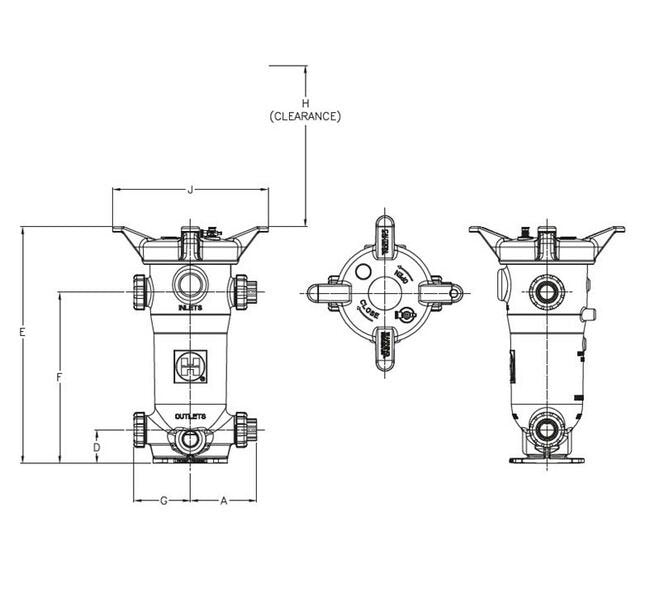

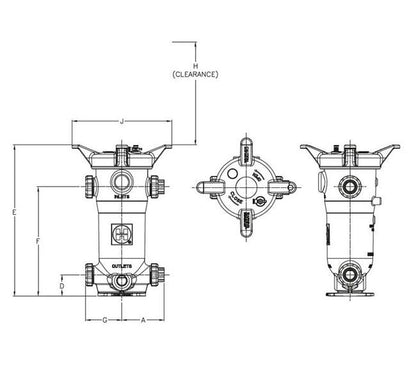

Specifications A
8.86 in | 225 mm
Specifications Bag Ratings
1, 5, 10, 25, 50, 100, 150, 200, 400, 600 and 800 Microns
Specifications Bag Size
7" x 16"177.8 mm x 406.4 mm
Specifications Body Material
GFPP per ASTM D4101 Cell Class 85580
Specifications Color
Platinum Gray
Specifications D
4.51 in | 114 mm
Specifications E
31.83 in | 808 mm
Specifications End Connector Material
GFPP per ASTM D4101 Cell Class 85580
Specifications F
23.00 in | 584 mm
Specifications G
7.60 in | 193 mm
Specifications H
15.25 in | 387 mm
Specifications J
20.93 in | 532 mm
Specifications Maximum Flow Rate
100.00 gpm
Specifications No Bag
1
Specifications O Rings Seals
FPM
Specifications Pipe Connection Size
1-1/4" | 32 mm
Specifications Pressure Rating
150 PSI at 70°F Non-Shock10 Bar at 21°C Non-Shock
Specifications Size
1-1/4"
Specifications Style
Simplex
Specifications True Union Connection Type
Flanged
Specifications Vessel Size
16" | 406.4 mm
Specifications Weight
47.80 lb | 21.68 kg
Applications 0
Water and Wastewater Treatment Chemical Processing Food and Beverage Metal Plating Aquatic and Animal Life Support Systems Water/Theme Parks Aquaculture
