Clark Remanufactured Power Steering Orbitrols
Clark Remanufactured Power Steering Orbitrols
SKU:FIL-3cf22b
Enhanced performance with Clark Remanufactured Orbitrols/Actuators/Torque Generators. Certified to meet original specifications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Clark Remanufactured Power Steering Orbitrols
$299.99
Quantity: 1
Claim Your Seller Account
Clark Remanufactured Power Steering Orbitrols
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power steering system with our remanufactured Clark Orbitrols/Actuators/Torque Generators. Expertly rebuilt to original specifications, these units ensure optimal performance and durability. Ideal for both consumer and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Easier Installations Due to True Union Connectivity Simplified Bag Removal From Hinged Basket Vertical Flow Flutes in Basket, No Bag Snag and More Flow Area
Materials 0
GFPP Cell Class 85580 per ASTM D4101 FPM Standard O-Ring Seals
Options 0
Gauge with Gauge Guard Pressure Differential Gauge and Switch EPDM O-Ring Seals Cartridge Adapters

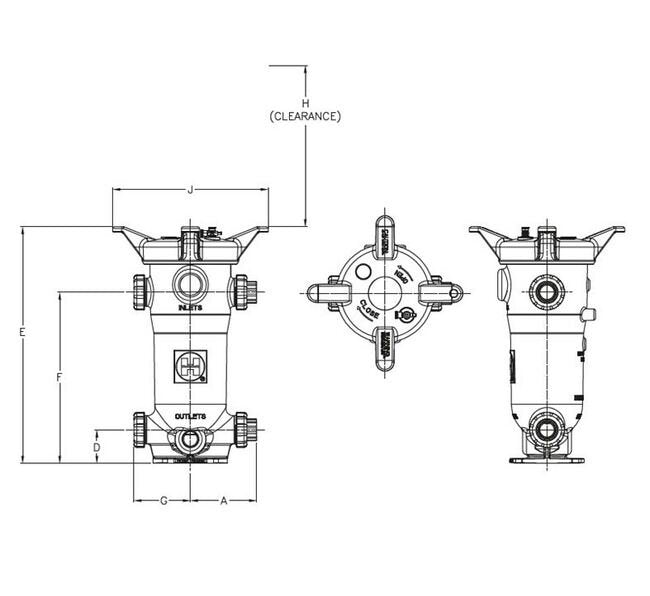

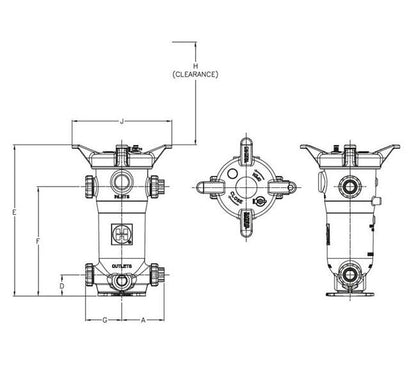

Specifications A
8.91 in | 226 mm
Specifications Bag Ratings
1, 5, 10, 25, 50, 100, 150, 200, 400, 600 and 800 Microns
Specifications Bag Size
7" x 16"177.8 mm x 406.4 mm
Specifications Body Material
GFPP per ASTM D4101 Cell Class 85580
Specifications Color
Platinum Gray
Specifications D
4.51 in | 114 mm
Specifications E
31.83 in | 808 mm
Specifications End Connector Material
PVC per ASTM D1784 Cell Class 12454
Specifications F
23.00 in | 584 mm
Specifications G
7.60 in | 193 mm
Specifications H
15.25 in | 387 mm
Specifications J
20.93 in | 532 mm
Specifications Maximum Flow Rate
100.00 gpm
Specifications No Bag
1
Specifications O Rings Seals
FPM
Specifications Pipe Connection Size
2" | 50 mm
Specifications Pressure Rating
150 PSI at 70°F Non-Shock10 Bar at 21°C Non-Shock
Specifications Size
2"
Specifications Style
Simplex
Specifications True Union Connection Type
Socket
Specifications Vessel Size
16" | 406.4 mm
Specifications Weight
47.80 lb | 21.68 kg
Applications 0
Water and Wastewater Treatment Chemical Processing Food and Beverage Metal Plating Aquatic and Animal Life Support Systems Water/Theme Parks Aquaculture
