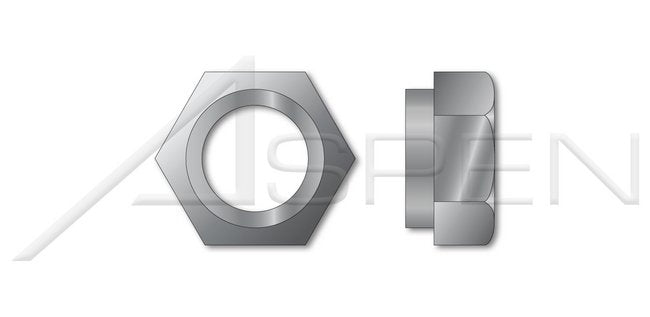

Class 10 All Metal Prevailing Torque Collar Style DIN 980V Metric Steel Cadmium Plated and Waxed Lock Nut

Name: Class 10 All Metal Prevailing Torque Collar Style DIN 980V Metric Steel Cadmium Plated and Waxed Lock Nut
Brand: Aspen Fasteners
SKU: NUT-f747dd
Price: 49.99 USD
Availability: OutOfStock

SKU:NUT-f747dd

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Lock Nuts feature a locking mechanism that resist loosening under normal operating conditions. Typically based on a hex nut form.

Product Specifications

Additional Information

One piece all metal lock nuts with distorted or deflected threads that produce a locking friction.A thin collar with distored threads machined into a standard nut body creates the locking mechanism.These distorted thread nuts are also called Toplock, Conelock, Stover, Crownlock or Autolock nuts.Class 10 nuts are designed to be used with screws and bolts of property class 10.9 or lower.

Specifications Coating

Cadmium Plated and Waxed

Specifications Coating Color

Clear

Specifications Drive Style

External Hex Drive

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 980V)

Specifications Material

Steel

Specifications Material Grade

Class 10 Steel

Specifications Material Processes

Quenched and Tempered

Specifications Style

Collar Style

Specifications System Of Measurement

Metric

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Class 10 All Metal Prevailing Torque Collar Style DIN 980V Metric Steel Cadmium Plated and Waxed Lock Nut
