Class 125 Bronze Swing Disc Check Valve

Name: Class 125 Bronze Swing Disc Check Valve
Brand: Caylor Industrial Sales, Inc.
SKU: VAL-d240fe
Price: 79.99 USD
Availability: OutOfStock

SKU:VAL-d240fe

High-quality Class 125 Bronze Swing Disc Check Valve with screw cap and Y-pattern swing type disc for reliable flow control.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Class 125 Bronze Swing Disc Check Valve offers superior performance and durability for industrial applications. Featuring a screw cap, integral seat, and Y-pattern swing type disc, this valve ensures secure flow control and prevents backflow. With a pressure rating of up to 125 PSI for various mediums including fluids, steam, water, oil, or gas, this valve is designed to meet the rigorous demands of institutional and government procurement standards. Crafted from high-quality bronze and built to ANSI and MSS specifications, this valve guarantees reliability and longevity in diverse operational environments.

Product Specifications

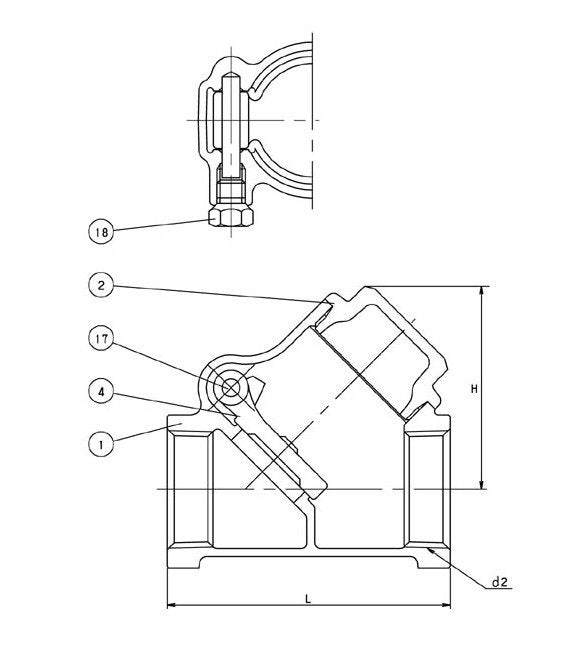

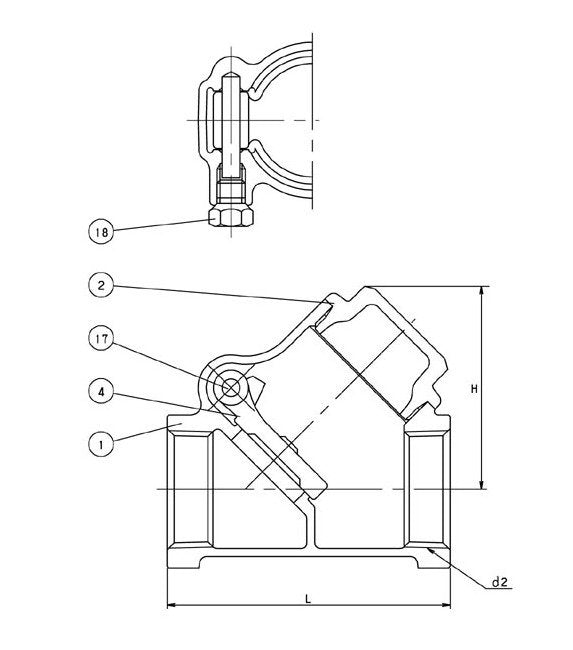

Material List 0

No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)

Specifications Approx Net Wt

2.04

Specifications Carton Qty

Specifications Class

AKYR

Specifications Dimension D1 Max

1.382

Specifications Dimension D1 Min

1.378

Specifications Dimension D2

1 1/4 inches

Specifications Dimension H

2.80

Specifications Dimension L

3.74

Specifications Dimension L1

2.83

Specifications End Size

Threaded

Specifications Material

Bronze

Specifications Pressuretemperature

125 PSI - Fluid to 406Â°F | 125 PSI - Saturated Steam to 353Â°F | 200 PSI - Non-Shock Cold Water, Oil or Gas

Standard 0

End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
