Class 125 Bronze Y-Pattern Swing Disc Check Valve - 2 Inches
Class 125 Bronze Y-Pattern Swing Disc Check Valve - 2 Inches
SKU:VAL-0498b8
Premium Class 125 Bronze Check Valve - Ideal for High-Pressure Applications
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Class 125 Bronze Y-Pattern Swing Disc Check Valve - 2 Inches
$59.99
Quantity: 1
Claim Your Seller Account
Class 125 Bronze Y-Pattern Swing Disc Check Valve - 2 Inches
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 125 Bronze Y-Pattern Swing Disc Check Valve is a robust valve designed for high-pressure applications up to 125 PSI with fluids up to 406°F and saturated steam up to 353°F. Crafted from high-quality bronze materials, it features a screw cap, integral seat, and Y-pattern swing type disc for reliable performance. Compliant with ANSI and MSS standards, this valve ensures leak-free operation and long-lasting durability.
Product Specifications

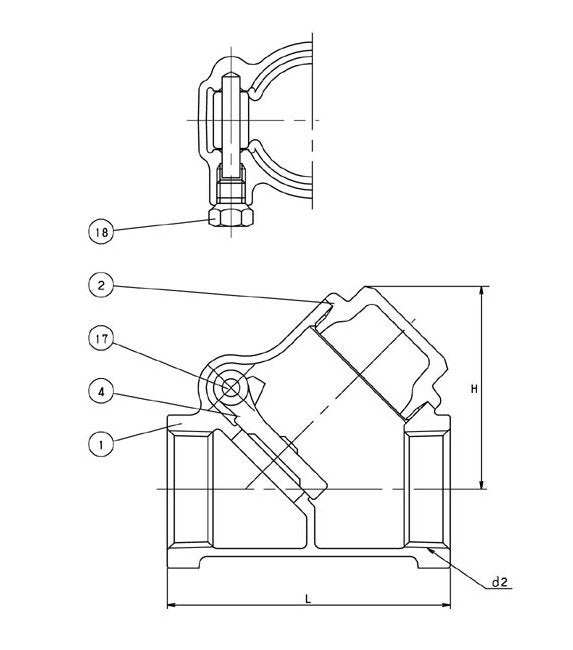

Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
4.58
Specifications Carton Qty
12
Specifications Class
AKYR
Specifications Dimension D1 Max
2.133
Specifications Dimension D1 Min
2.128
Specifications Dimension D2
2 inches
Specifications Dimension H
3.74
Specifications Dimension L
5.04
Specifications Dimension L1
4.02
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
