Class 125 Cast Iron Ball Valve with Full Port
Class 125 Cast Iron Ball Valve with Full Port
SKU:VAL-09893b
Enhance your flow control systems with our Class 125 Cast Iron Ball Valve. Perfect for steam & water systems.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Class 125 Cast Iron Ball Valve with Full Port
$99.99
Quantity: 1
Claim Your Seller Account
Class 125 Cast Iron Ball Valve with Full Port
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control systems with the Class 125 Cast Iron Ball Valve. This two-piece valve features a blowout proof stem, flat face flanged ends, and PTFE seats for optimal performance and durability. Meeting ASME B16.1 and ASME B16.10 standards, this valve is designed for 125 PSI steam and 200 PSI cold water, oil, or gas applications, making it ideal for industrial and institutional use.
Product Specifications

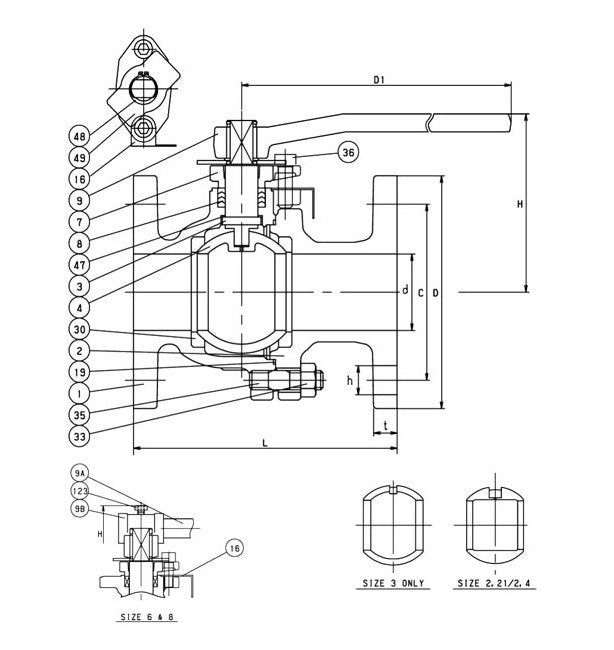

Material List 0
No. Name of Part Specification 1 Body Cast Iron (A126 Cl. B) 2 Body Caps Cast Iron (A126 Cl. B) 3 Stem Stainless Steel (A276 Type 304) 4 Ball Stainless Steel (A276, Type 304 or A351 Gr. CF8) 7 Gland Ductile Iron 8 Gland Packing (1 Set) Ptfe 9 Handle Ductile Iron 9A Handle Bar Carbon Steel (6"-10") 9B Handle Head Ductile Iron (6"-10") 16A Name Plate Aluminum 16B Washer Carbon Steel 19 Gasket PTFE 30 Ball Seats PTFE 33 Cap Nut (1 Set) Carbon Steel 35 Cap Bolt (1 Set) Carbon Steel 36 Gland Bolt (1 Set) Carbon Steel 47 Thrust Washer G/F + PTFE 48 Snap Ring Carbon Steel 49 Stopper Stainless Steel 123 Handle Bolt Carbon Steel (6"-10")
Specifications Approx Net Wt
46.00
Specifications Bolt No
4
Specifications Bolt Size
5/8 inches
Specifications Carton Qty
1
Specifications Class
FCTB
Specifications Dimension D
3.15
Specifications Dimension D1
15.75
Specifications Dimension D2
3 inches
Specifications Dimension H
6.38
Specifications Dimension L
7.99
Specifications End Size
Flat Face Flanged
Specifications Material
Cast Iron
Specifications Port
Full
Specifications Pressuretemperature
125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have Class 125 WSP/200 WOG cast iron body, CF8 stainless steel trim, blowout proof stem, PTFE seats and seals with flat face flanged ends and conforming to MSS SP-72, ASME B16.1, ASME B16.10.KITZ Code # 90 (125FCTB) Full PortKITZ Code # 91 (125FCTR) Standard Port
Standard 0
End to End ASME B16.10 Class 125/150 End Connection ASME B16.1 Class 125 Wall Thickness KITZ Conforms to MSS SP72
