Class 150/300 Bronze Hose Angle Valve - NST Threaded

Name: Class 150/300 Bronze Hose Angle Valve - NST Threaded
Brand: World Wide Metric, Inc.
SKU: VAL-6a0367
Price: 149.99 USD
Availability: OutOfStock

SKU:VAL-6a0367

Durable Class 150/300 Bronze Hose Angle Valve for reliable fluid control. Meets ANSI standards.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Class 150/300 Bronze Hose Angle Valve with Screwed and Bolted Bonnet is a robust solution for industrial fluid control. Manufactured with bronze body, bronze/stainless steel disc, and brass/stainless steel stem, this valve ensures durability and reliability. Meeting ANSI B16.24 Class 150 standards, with hydraulic inspection ratings of 350 PSIG (Shell) and 225 PSIG (Seat), it guarantees optimal performance under pressure. Suitable for various applications, this valve is versatile, efficient, and built to last.

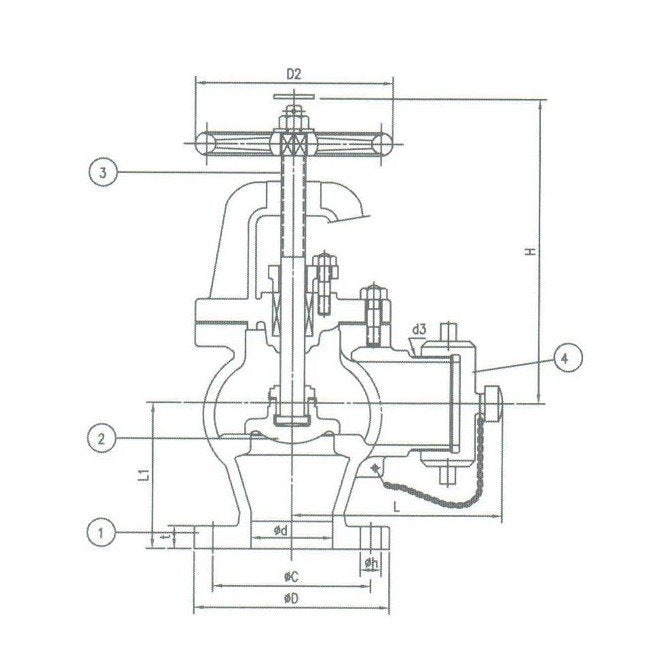

Product Specifications

Specifications Body Material

Bronze

Specifications Bonnet Type

Screwed Bonnet

Specifications C

3.88 in | 99 mm

Specifications D

5 in | 127 mm

Specifications D2

5.51 in | 140 mm

Specifications D3 Nh Nst

9.5 in

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

6.50 in | 165 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications Impaissa Code

711752

Specifications L

3.74 in | 95 mm

Specifications L1

3.94 in | 100 mm

Specifications Number Of Holes

Specifications Size

1-1/2"

Specifications Stem Material

Brass | Stainless Steel

Specifications T

0.44 in | 11 mm

Class 150/300 Bronze Hose Angle Valve - NST Threaded
