Class 150/300 Hose Angle Valve, NST Threaded

Name: Class 150/300 Hose Angle Valve, NST Threaded
Brand: World Wide Metric, Inc.
SKU: VAL-e27d56
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-e27d56

Durable Class 150/300 Hose Angle Valve with Screwed & Bolted Bonnet, ideal for industrial use. Bronze body & cap, SS disc option. Conforms to ANSI B16.24 Class 150.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

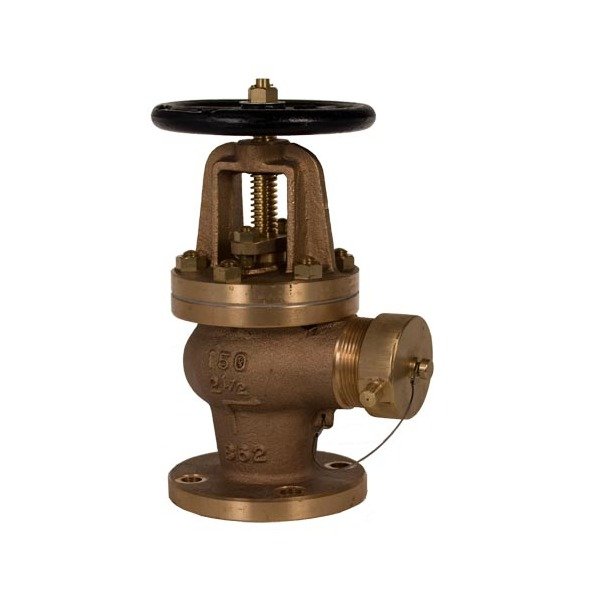

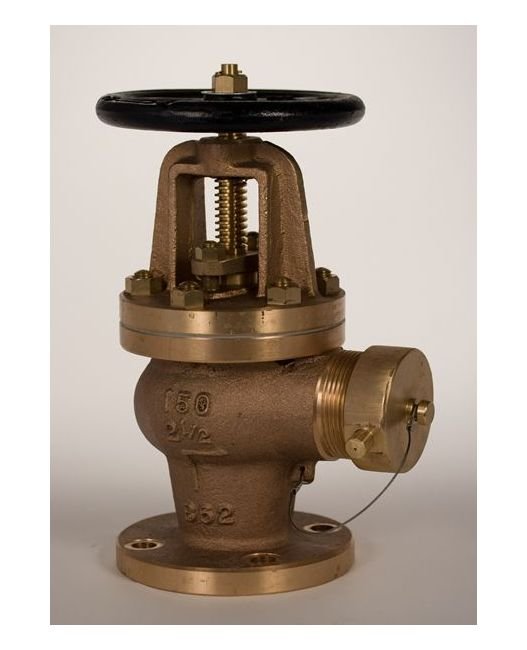

The Class 150/300 Hose Angle Valve with Screwed and Bolted Bonnet - NST Threaded is a high-quality valve designed for durable performance. Its body and cap are crafted from Bronze B622, while the disc can be either Bronze B62 or Stainless Steel SS304 for enhanced versatility. The stem is made of robust Brass B124 or Stainless Steel SS304. This valve conforms to ANSI B16.24 Class 150 flange standards and features a Bolted Bonnet for secure operation under varying pressures. With a variety of thread connections available upon request, this valve offers flexibility and reliability for industrial applications.

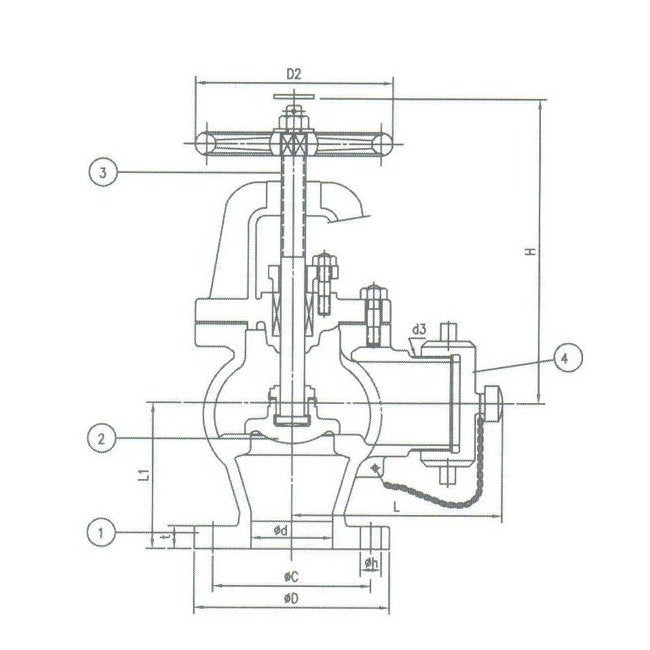

Product Specifications

Specifications Body Material

Bronze

Specifications Bonnet Type

Bolted Bonnet

Specifications C

5.500 in | 140 mm

Specifications D

7 in | 178 mm

Specifications D2

7.87 in | 200 mm

Specifications D3 Nh Nst

7 in

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

10.04 in | 255 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications Impaissa Code

711754

Specifications L

6.50 in | 165 mm

Specifications L1

5.12 in | 130 mm

Specifications Number Of Holes

Specifications Size

2-1/2"

Specifications Stem Material

Brass | Stainless Steel

Specifications T

0.56 in | 14 mm
