Class 150/300 Hose Angle Valve - NST Threaded
Class 150/300 Hose Angle Valve - NST Threaded
SKU:VAL-cd1201
High-quality Class 150/300 Hose Angle Valve for industrial use - NST Threaded connection
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Class 150/300 Hose Angle Valve - NST Threaded
$149.99
Quantity: 1
Claim Your Seller Account
Class 150/300 Hose Angle Valve - NST Threaded
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

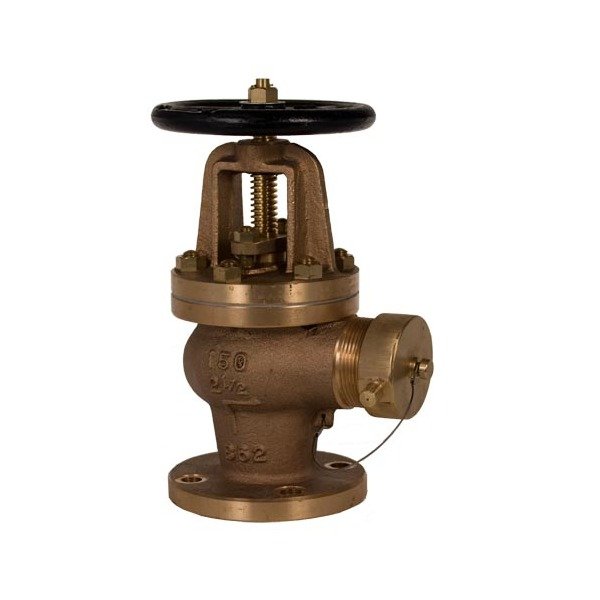

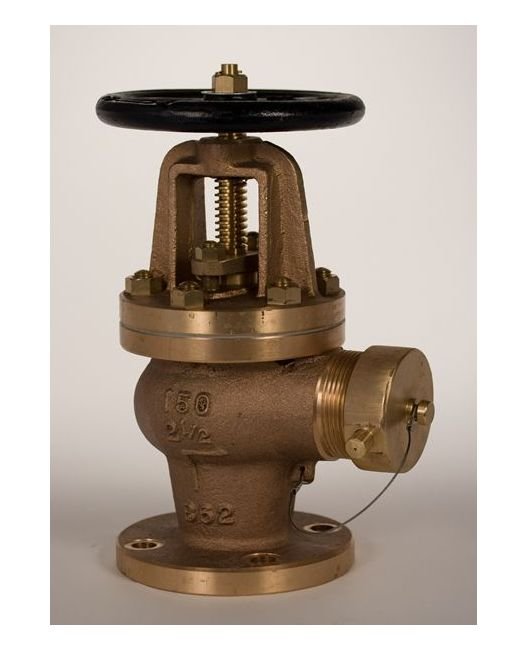

The Class 150/300 Hose Angle Valve is expertly crafted with a Bronze body, offering durability and resilience for industrial applications. The screwed and bolted bonnet design ensures secure closure, while the NST threaded connection provides reliable performance. Equipped with bronze or stainless steel disc options and a brass or stainless steel stem, this valve meets ANSI standards, offering exceptional hydraulic performance and a reliable sealing mechanism.

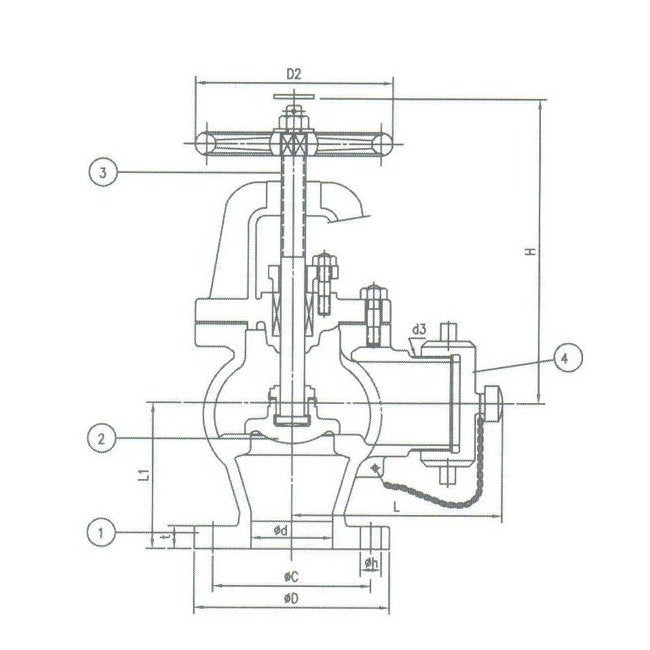

Product Specifications
Specifications Body Material
Bronze
Specifications Bonnet Type
Bolted Bonnet
Specifications C
4.75 in | 121 mm
Specifications D
6 in | 152 mm
Specifications D2
6.30 in | 160 mm
Specifications D3 Nh Nst
8 in
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
9.45 in | 240 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
5.12 in | 130 mm
Specifications L1
4.72 in | 120 mm
Specifications Number Of Holes
4
Specifications Size
2"
Specifications Stem Material
Brass | Stainless Steel
Specifications T
0.50 in | 13 mm
