Class 150/300 Hose Globe Valve - NST Threaded

Name: Class 150/300 Hose Globe Valve - NST Threaded
Brand: World Wide Metric, Inc.
SKU: VAL-434926
Price: 169.99 USD
Availability: OutOfStock

SKU:VAL-434926

Durable Class 150/300 Hose Globe Valve with Screwed Bonnet, NST Threaded, ideal for industrial applications.

$169.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

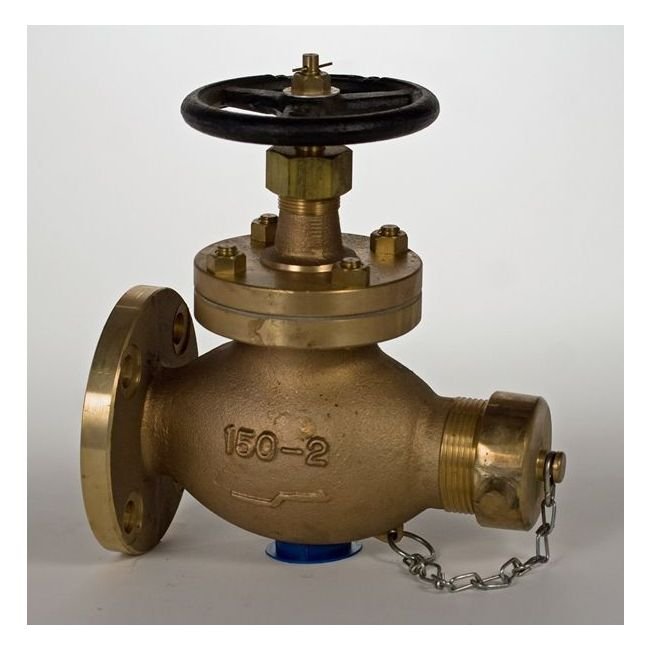

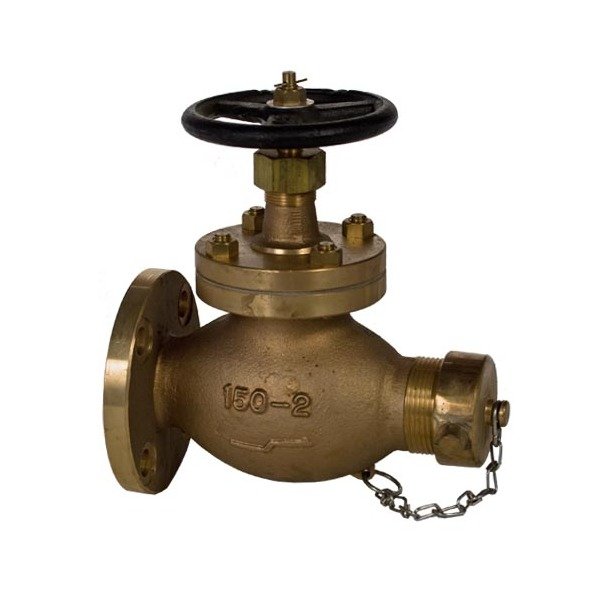

The Class 150/300 Hose Globe Valve with Screwed and Bolted Bonnet is a durable and reliable valve suitable for a wide range of applications. Constructed with high-quality bronze body, bronze/stainless steel disc, and brass/stainless steel stem, this valve ensures long-lasting performance. With hydraulic inspections at 350 PSIG for the shell and 225 PSIG for the seat, it meets stringent quality standards. The Screwed Bonnet design and NST threading provide easy installation and maintenance, making it ideal for industrial use.

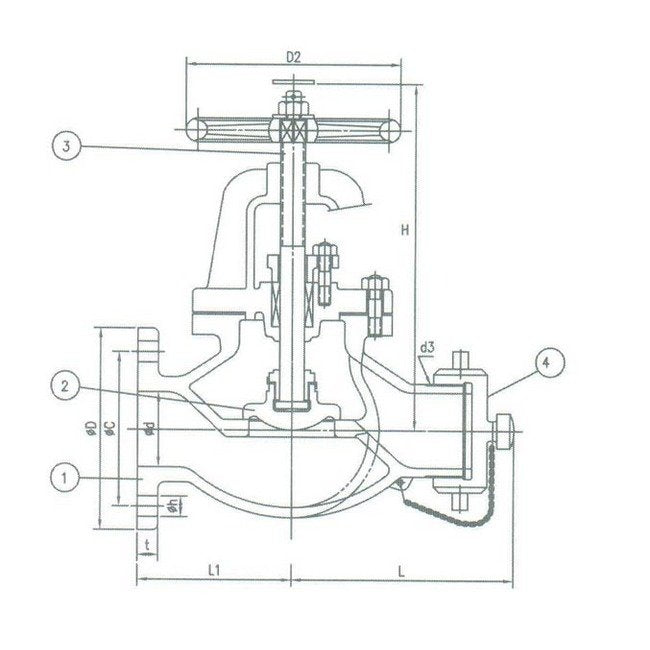

Product Specifications

Specifications Body Material

Bronze

Specifications Bonnet Type

Screwed Bonnet

Specifications C

3.88 in | 99 mm

Specifications D

5 in | 127 mm

Specifications D2

5.51 in | 140 mm

Specifications D3 Nh Nst

9.5 in

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

7.48 in | 190 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications Impaissa Code

751751

Specifications L

4.13 in | 105 mm

Specifications L1

3.54 in | 90 mm

Specifications Number Of Holes

Specifications Size

1-1/2"

Specifications Stem Material

Brass | Stainless Steel

Specifications T

0.44 in | 11 mm
