Class 150/300 NST Threaded Hose Globe Valve

Name: Class 150/300 NST Threaded Hose Globe Valve
Brand: World Wide Metric, Inc.
SKU: VAL-765c80
Price: 199.99 USD
Availability: OutOfStock

SKU:VAL-765c80

Highly durable Class 150/300 Hose Globe Valve for precise industrial flow control

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

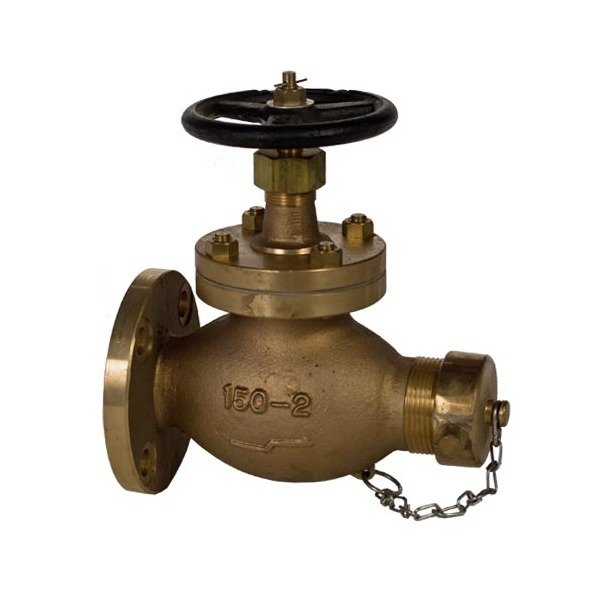

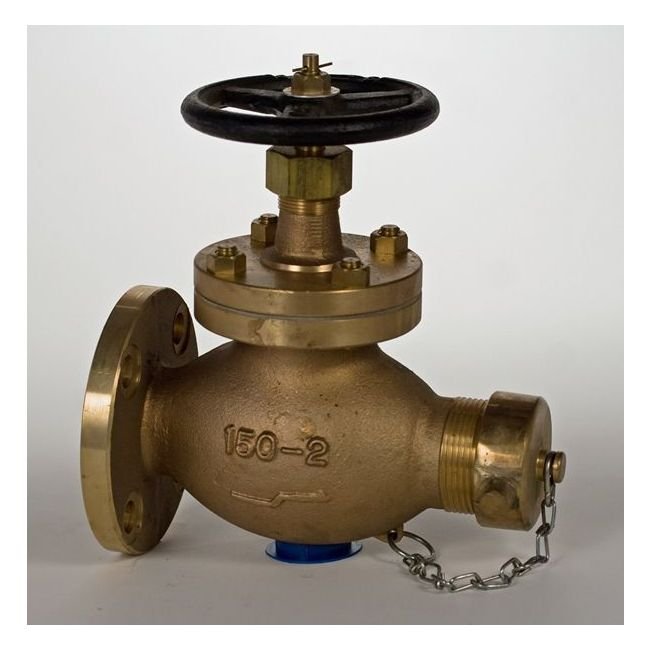

The Class 150/300 NST Threaded Hose Globe Valve with Screwed and Bolted Bonnet is a robust solution for precision flow control in industrial applications. Constructed with Bronze body, Bronze or Stainless Steel disc, and Brass or Stainless Steel stem, this valve ensures durability and efficient performance. With ANSI B16.24 Class 150 flanges and a variety of thread connections available, it offers versatility and reliability. Meeting hydraulic inspection standards of 350 PSIG (Shell) and 225 PSIG (Seat), this valve is designed for optimal functionality in demanding environments.

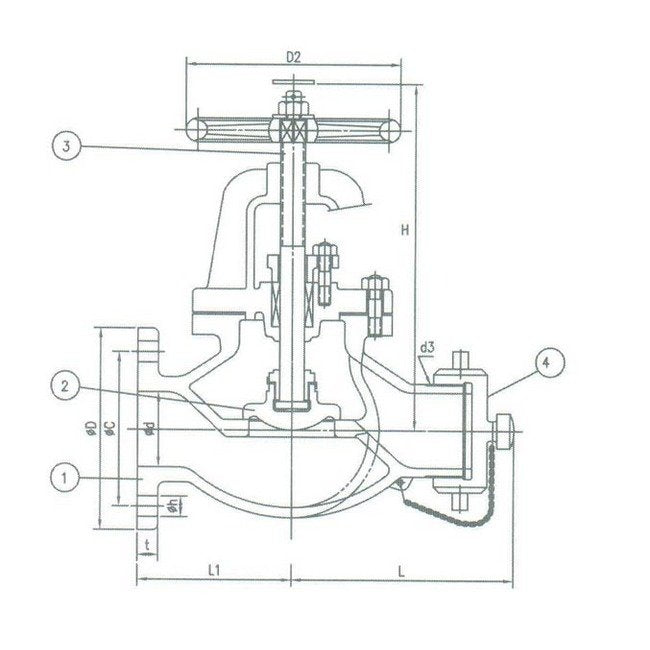

Product Specifications

Specifications Body Material

Bronze

Specifications Bonnet Type

Bolted Bonnet

Specifications C

5.500 in | 140 mm

Specifications D

7 in | 178 mm

Specifications D2

7.87 in | 200 mm

Specifications D3 Nh Nst

7 in

Specifications Disc Material

Bronze | Stainless Steel

Specifications H

11.61 in | 295 mm

Specifications Hydraulic Inspection Seat

225 PSIG

Specifications Hydraulic Inspection Shell

350 PSIG

Specifications Impaissa Code

751753

Specifications L

6.50 in | 165 mm

Specifications L1

5.31 in | 135 mm

Specifications Number Of Holes

Specifications Size

2-1/2"

Specifications Stem Material

Brass | Stainless Steel

Specifications T

0.56 in | 14 mm
