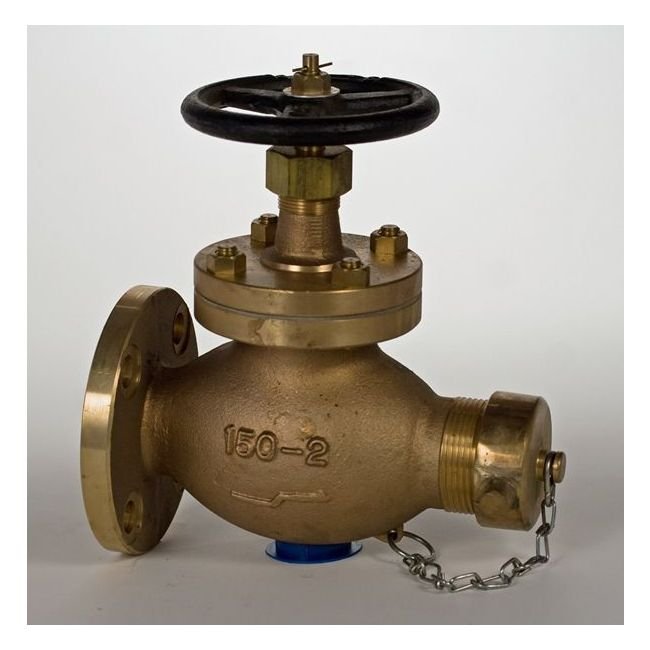

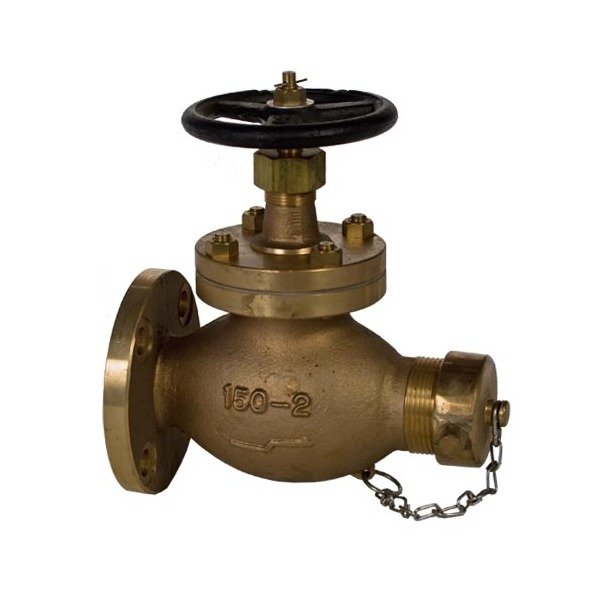

Class 150/300 NST Threaded Hose Globe Valve
Class 150/300 NST Threaded Hose Globe Valve
SKU:VAL-0f871f
High-quality Class 150/300 NST Threaded Globe Valve for industrial applications. Reliable, durable, and pressure-tested for optimal performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Class 150/300 NST Threaded Hose Globe Valve
$299.99
Quantity: 1
Claim Your Seller Account
Class 150/300 NST Threaded Hose Globe Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150/300 NST Threaded Hose Globe Valve with Screwed and Bolted Bonnet is a reliable valve designed for industrial applications. Crafted with high-quality materials such as Bronze body, Bronze or Stainless Steel disc, and Brass or Stainless Steel stem, this valve ensures durability and optimal performance. With ANSI B16.24 Class 150 flanges and a bolted bonnet, it meets stringent industry standards for pressure ratings and reliability. Suitable for hydraulic systems with a Shell Inspection pressure of 350 PSIG and Seat Inspection pressure of 225 PSIG, this valve guarantees secure flow control. Contact us for custom thread connections to meet your specific requirements.

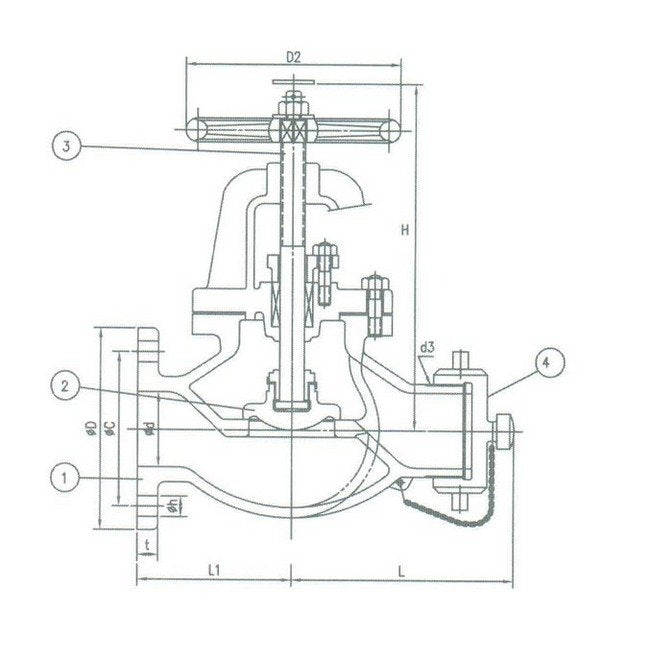

Product Specifications
Specifications Body Material
Bronze
Specifications Bonnet Type
Bolted Bonnet
Specifications C
4.75 in | 121 mm
Specifications D
6 in | 152 mm
Specifications D2
6.30 in | 160 mm
Specifications D3 Nh Nst
8 in
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
10.630 in | 270 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
5.50 in | 140 mm
Specifications L1
4.33 in | 110 mm
Specifications Number Of Holes
4
Specifications Size
2"
Specifications Stem Material
Brass | Stainless Steel
Specifications T
0.50 in | 13 mm
