Class 150 Blind Flange 16-inch

Class 150 Blind Flange 16-inch

FIT-b9a7fa

Explore our Class 150 Blind Flange 16-inch for durable Class 150 steel fittings with precise dimensions for industrial applications.

$299.99
$299.99
Sale

Initiate Order

Class 150 Blind Flange 16-inch

Class 150 Blind Flange 16-inch

$299.99

Quantity: 1

Claim Your Seller Account

Class 150 Blind Flange 16-inch

Class 150 Blind Flange 16-inch

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

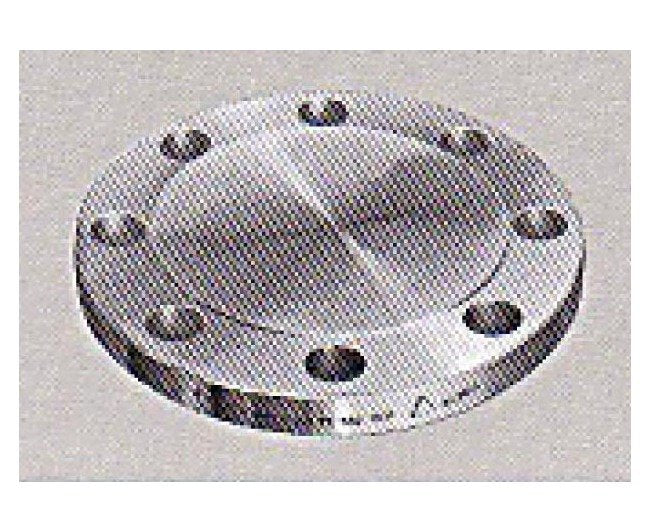

The Class 150 Blind Flange in 16 inches boasts precise engineering meeting Class 150 standards. With an outside diameter of 23.50 inches and weighing 170.00 lbs, it ensures secure and leak-proof connections. Its raised face design enhances fitting durability and performance, making it ideal for industrial applications requiring robust forged steel components.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0

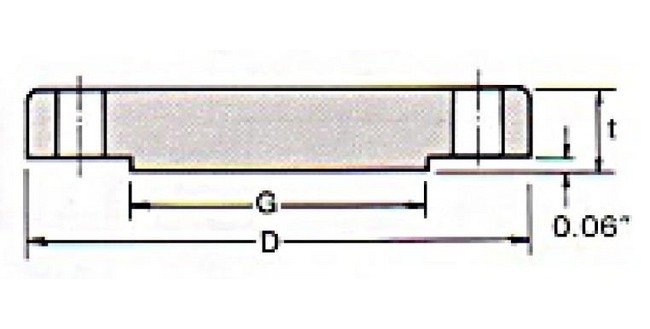

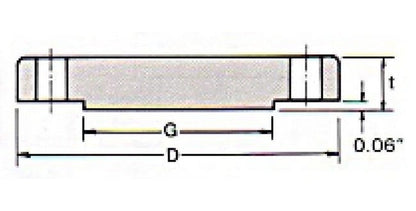

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
170.00 lbs
Specifications Bolt Circle Diameter
21.25 inches
Specifications Diameter Of Bolts
1 inches
Specifications Diameter Of Holes
1.12 inches
Specifications Machine Bolt Length Raised Face
4.50 inches
Specifications Nominal Pipe Size
16 inches
Specifications Number Of Holes
16
Specifications Od Of Raised Face G
18.50 inches
Specifications Outside Diameter D
23.50 inches
Specifications Stud Bolt Length Raised Face
5.25 inches
Specifications Stud Bolt Length Ring Joint
5.75 inches
Specifications Thickness T
1.44 inches
