Class 150 Blind Flange - 20 inches
Class 150 Blind Flange - 20 inches
SKU:FIT-4f90d5
Durable Class 150 Blind Flange - 20in for secure piping solutions. Raised face, parallel gasket surfaces, and hub options for efficiency.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Class 150 Blind Flange - 20 inches
$349.99
Quantity: 1
Claim Your Seller Account
Class 150 Blind Flange - 20 inches
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

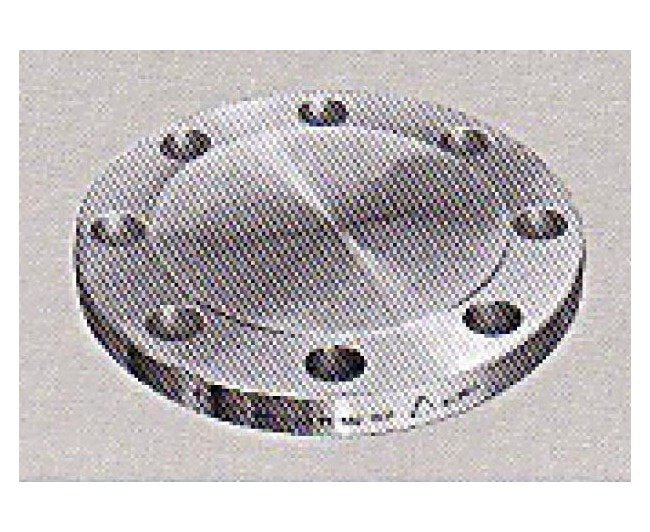

The Class 150 Blind Flange in 20 inches provides a durable and reliable solution for piping systems in industrial settings. Constructed with precision to meet stringent standards, this blind flange offers a secure seal, robust design, and easy installation. With a raised face for enhanced sealing properties, parallel gasket surfaces for optimal bolting, and various hub options, this blind flange ensures efficiency and longevity in demanding applications.
Product Specifications
Features 0

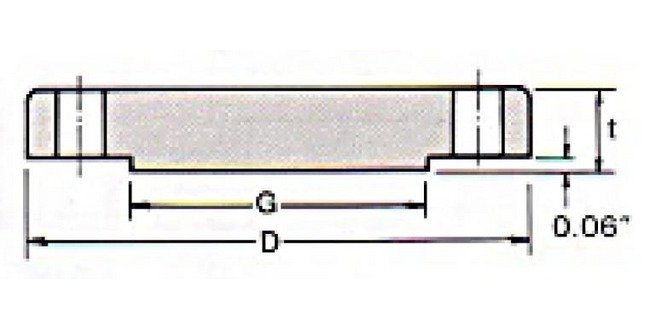

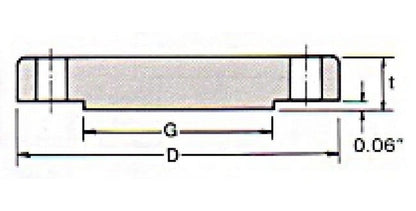

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
272.00 lbs
Specifications Bolt Circle Diameter
25.00 inches
Specifications Diameter Of Bolts
1 1/8 inches
Specifications Diameter Of Holes
1.25 inches
Specifications Machine Bolt Length Raised Face
5.50 inches
Specifications Nominal Pipe Size
20 inches
Specifications Number Of Holes
20
Specifications Od Of Raised Face G
23.00 inches
Specifications Outside Diameter D
27.50 inches
Specifications Stud Bolt Length Raised Face
6.25 inches
Specifications Stud Bolt Length Ring Joint
6.75 inches
Specifications Thickness T
1.69 inches
