Class 150 Blind Flange for 5" Pipes

Class 150 Blind Flange for 5" Pipes

FIT-915f2c

High-quality Class 150 Blind Flange for 5" pipes. Precision-engineered with 0.06" raised face for tight sealing. ANSI B16.5 compliant.

$79.99
$79.99
Sale

Initiate Order

Class 150 Blind Flange for 5" Pipes

Class 150 Blind Flange for 5" Pipes

$79.99

Quantity: 1

Claim Your Seller Account

Class 150 Blind Flange for 5" Pipes

Class 150 Blind Flange for 5" Pipes

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

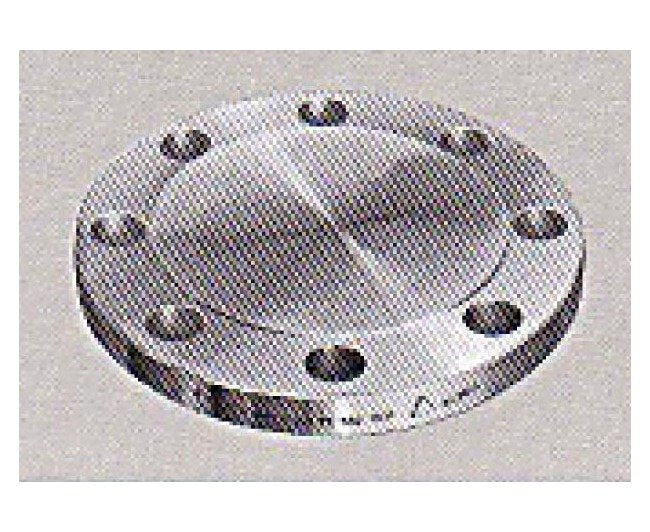

Enhance your piping system with our Class 150 Blind Flange designed for 5-inch pipes. Crafted from forged steel, this blind flange ensures tight sealing with precision engineering. Features include a 0.06" raised face, parallel gasket surface, and optimal bolt alignment. Compliant with ANSI B16.5 standards, ideal for industrial applications requiring robust fittings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0

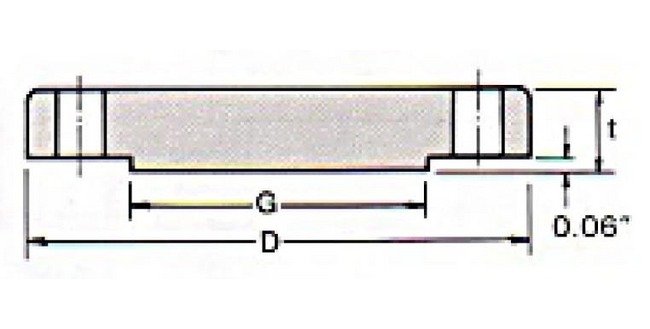

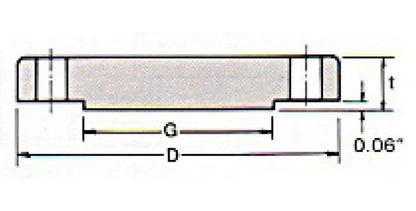

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
19.30 lbs
Specifications Bolt Circle Diameter
8.50 inches
Specifications Diameter Of Bolts
3/4 inches
Specifications Diameter Of Holes
0.88 inches
Specifications Machine Bolt Length Raised Face
3.25 inches
Specifications Nominal Pipe Size
5 inches
Specifications Number Of Holes
8
Specifications Od Of Raised Face G
7.31 inches
Specifications Outside Diameter D
10.00 inches
Specifications Stud Bolt Length Raised Face
3.75 inches
Specifications Stud Bolt Length Ring Joint
4.25 inches
Specifications Thickness T
0.94 inches
