Class 150 Bronze Angle Valve
Class 150 Bronze Angle Valve
SKU:VAL-48caa4
Durable Class 150 Bronze Angle Valve for industrial use. Meets ANSI B16.10 and B16.24 standards. Reliable performance guaranteed.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve
$699.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet and OS&Y design ensures reliable performance in industrial settings. Constructed with sturdy Bronze body, Stainless Steel seat, and Brass or Stainless Steel stem, it meets ANSI B16.10 face-to-face standards. With flanges meeting ANSI B16.24 Class 150 requirements, this valve offers top-tier hydraulic inspections and optimal durability.
Ready to Grow Without Cash Flow Constraints?

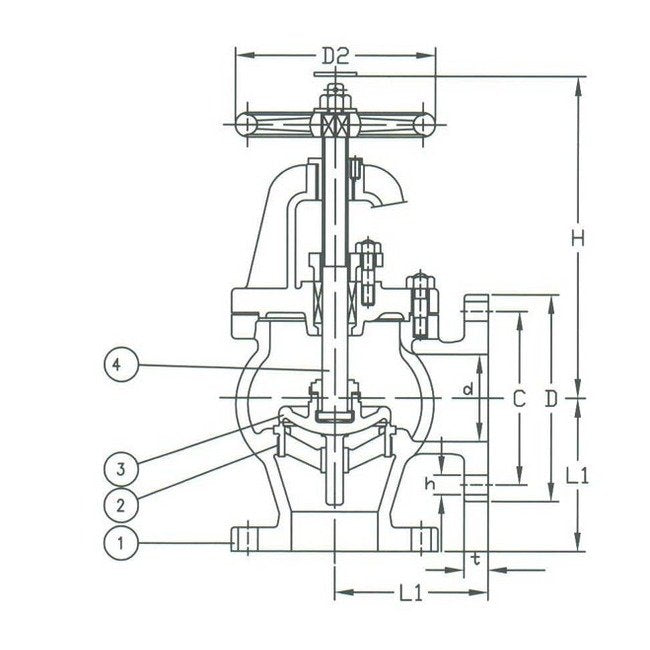

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
6.0 in | 152 mm
Specifications Connection
Flanged Drilled
Specifications D
7.5 in | 191 mm
Specifications D2
8.75 in | 222 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
14.75 in | 375 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.75 in | 121 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
3"
Specifications Stem Material
Stainless Steel
Specifications T
0.63 in | 16 mm
Specifications Weight
44 lb | 24.0 kg
