Class 150 Bronze Angle Valve
Class 150 Bronze Angle Valve
SKU:VAL-9e4cc5
Durable Class 150 Bronze Angle Valve, ideal for industrial fluid control. Meets ANSI standards. Flanged connection and handwheel actuators.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve
$799.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet - OS&Y design is a reliable and durable solution for fluid control in industrial settings. Constructed with high-quality Bronze, Brass, and Stainless Steel materials, this valve ensures longevity and efficient performance. With a hydraulic inspection pressure of 350 PSIG for the shell and 225 PSIG for the seat, it meets stringent industry standards. The valve's flanged connection, handwheel actuators, and compliance with ANSI B16.10 and B16.24 Class 150 make it ideal for institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?

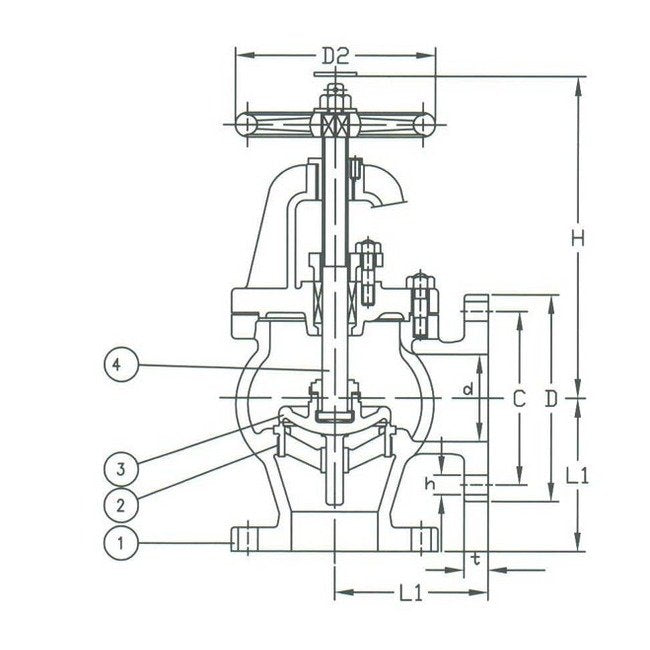

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
11.75 in | 298 mm
Specifications Connection
Flanged Drilled
Specifications D
13.50 in | 343 mm
Specifications D2
14.00 in | 356 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
27.25 in | 692 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
9.00 in | 229 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
8"
Specifications Stem Material
Brass
Specifications T
0.94 in | 24 mm
Specifications Weight
266 lb | 121 kg
