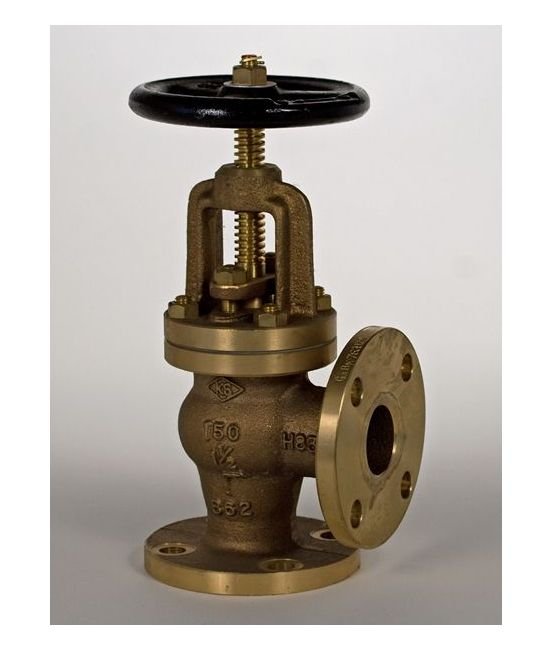

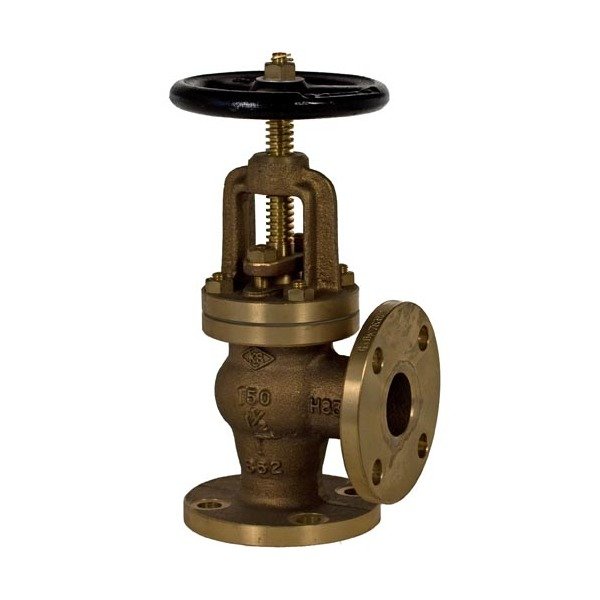

The Class 150 Bronze Angle Valve with Bolted Bonnet features a sturdy Bronze body with Stainless Steel seat and disc materials, ensuring durability and corrosion resistance. This valve is designed for reliable performance in high-pressure applications up to 350 PSIG hydraulic inspection. With precise dimensions meeting ANSI standards, this valve guarantees a secure flanged connection, making it ideal for industrial use where safety and efficiency are paramount.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze

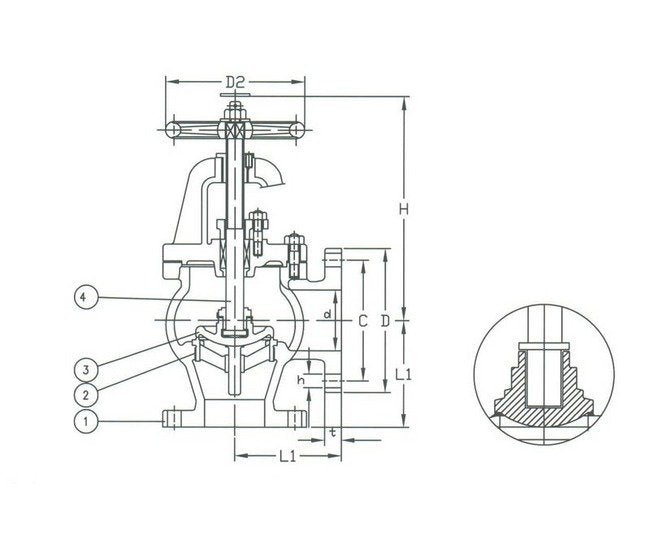

Specifications C
8.50 in | 216 mm
Specifications Connection
Flanged Drilled
Specifications D
10 in | 254 mm
Specifications D2
10 in | 254 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
18.25 in | 464 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
7.00 in | 178 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
5"
Specifications Stem Material
Stainless Steel
Specifications T
0.75 in | 19 mm
Specifications Weight
114 lb | 52 kg
