Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y
SKU:VAL-a0fddb
Dependable Class 150 Bronze Angle Valve for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y
$899.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with a Bolted Bonnet and OS&Y design offers reliable performance in industrial settings. Crafted from high-quality Bronze, Brass, and Stainless Steel materials, this valve ensures durability and longevity. With ANSI B16.10 compliance and flanges meeting ANSI B16.24 Class 150 standards, it guarantees precise operation and ease of installation. Suitable for hydraulic applications with a Shell pressure rating of 350 PSIG and a Seat pressure rating of 225 PSIG, this valve is a dependable choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

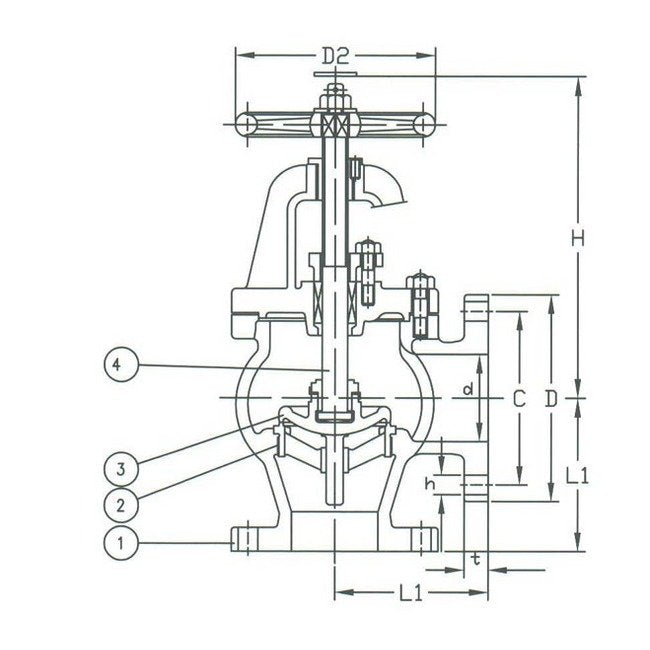

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
9.500 in | 241 mm
Specifications Connection
Flanged Drilled
Specifications D
11 in | 279 mm
Specifications D2
12.00 in | 305 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
21.50 in | 546 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8 in | 203 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
6"
Specifications Stem Material
Brass
Specifications T
0.81 in | 21 mm
Specifications Weight
154 lb | 70.0 kg
