Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y
SKU:VAL-3d20ef
High-performance Class 150 Bronze Angle Valve - ideal for industrial use. Meets ANSI standards.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y
$399.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet, OS&Y design offers reliable performance for industrial applications. Crafted from high-quality bronze and stainless steel components, this valve ensures durability and corrosion resistance. With compliance to ANSI standards, including hydraulic tests, and precise dimensions for seamless installation, this valve is ideal for institutional settings.
Ready to Grow Without Cash Flow Constraints?

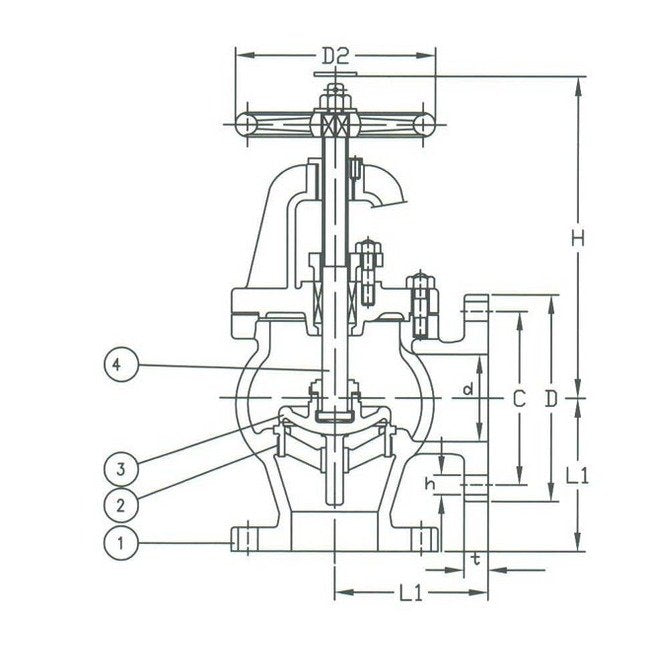

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
3.88 in | 99 mm
Specifications Connection
Flanged Drilled
Specifications D
5 in | 127 mm
Specifications D2
5.00 in | 127 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
9.00 in | 229 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
3.25 in | 83 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
1-1/2"
Specifications Stem Material
Stainless Steel
Specifications T
0.44 in | 11 mm
Specifications Weight
22 lb | 10.0 kg
