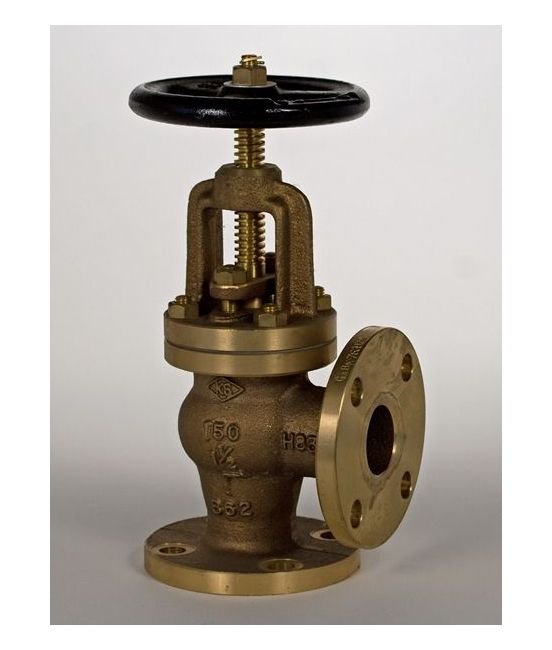

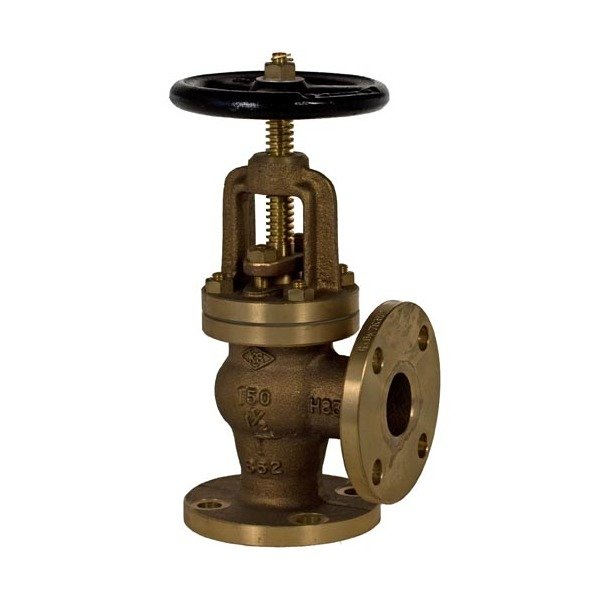

Class 150 Bronze Angle Valve - Bolted Bonnet OS&Y
Class 150 Bronze Angle Valve - Bolted Bonnet OS&Y
SKU:VAL-178da3
Durable Class 150 Bronze Angle Valve with Bolted Bonnet OS&Y design, meets ANSI standards, ideal for various applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve - Bolted Bonnet OS&Y
$299.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve - Bolted Bonnet OS&Y
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet and OS&Y design is a robust and reliable valve suitable for various industrial applications. Constructed with high-quality materials including Bronze body, Stainless Steel seat, and options for Bronze or Stainless Steel disc, this valve ensures durability and corrosion resistance. The valve meets ANSI B16.10 face-to-center standards and ANSI B16.24 Class 150 flange requirements, making it compatible with a wide range of systems. With a Hydraulic Inspection Shell rating of 350 PSIG and Seat rating of 225 PSIG, this valve offers secure and efficient operation under different pressures.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze

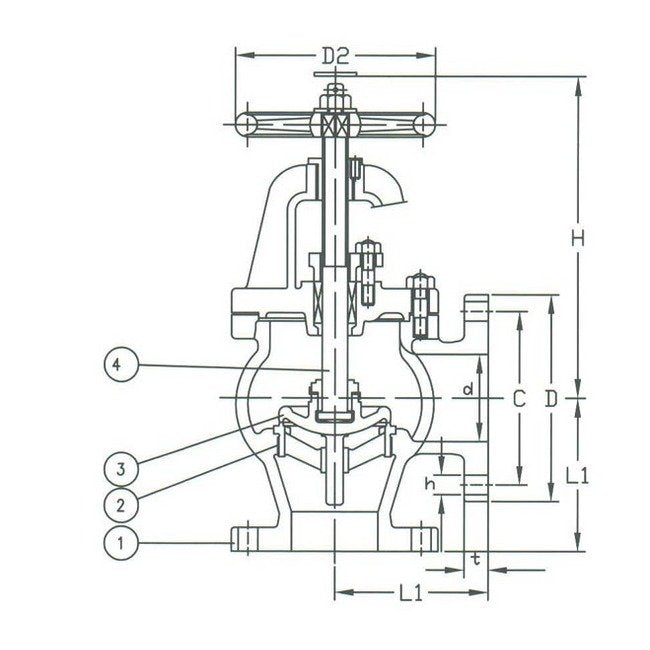

Specifications C
7.500 in | 191 mm
Specifications Connection
Flanged Drilled
Specifications D
9 in | 229 mm
Specifications D2
9 in | 229 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
15.38 in | 391 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
5.75 in | 146 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
4"
Specifications Stem Material
Stainless Steel
Specifications T
0.69 in | 18 mm
Specifications Weight
84 lb | 38.0 kg
