Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular
SKU:VAL-876c8b
Durable Class 150 Bronze Angle Valve with Bolted Bonnet and OS&Y design for industrial reliability.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular
$289.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with a Bolted Bonnet and OS&Y design is a reliable choice for industrial applications. Crafted from durable bronze, stainless steel seat and disc materials, this valve ensures longevity and efficiency. With ANSI B16.10 face-to-center and ANSI B16.24 Class 150 flange standards, it guarantees secure connections and optimal performance, making it ideal for various fluid control systems.
Ready to Grow Without Cash Flow Constraints?

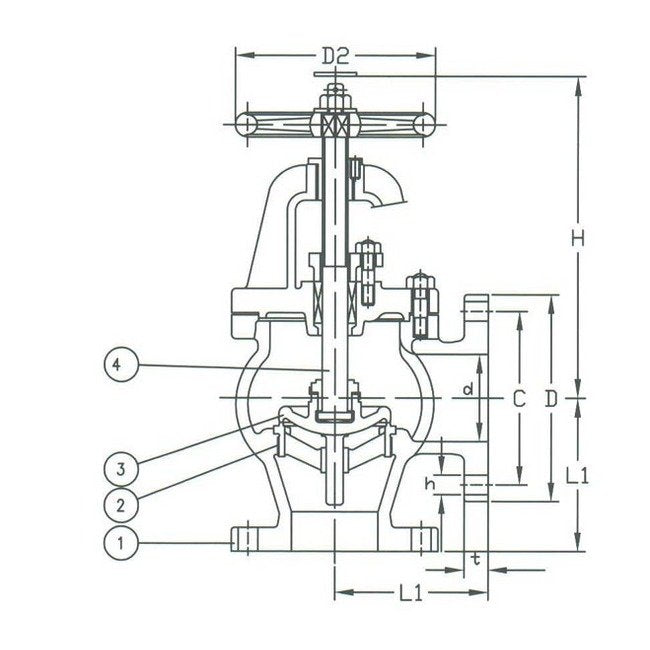

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
4.75 in | 121 mm
Specifications Connection
Flanged Drilled
Specifications D
6 in | 152 mm
Specifications D2
6.00 in | 152 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
11.12 in | 282 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.00 in | 102 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
2"
Specifications Stem Material
Stainless Steel
Specifications T
0.50 in | 13 mm
Specifications Weight
33 lb | 15.0 kg
