Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular
SKU:VAL-b3c27b
Durable Class 150 Bronze Angle Valve with OS&Y design for reliable industrial use. Compliant with ANSI standards.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular
$259.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with a Bolted Bonnet, OS&Y design, offers reliable performance in industrial applications. Made of high-quality bronze and stainless steel components, this valve ensures durability and longevity. With precise hydraulic inspections meeting ANSI standards and a handwheel actuator, it provides ease of operation and maintenance, making it a top choice for institutional buyers seeking quality and compliance.
Ready to Grow Without Cash Flow Constraints?

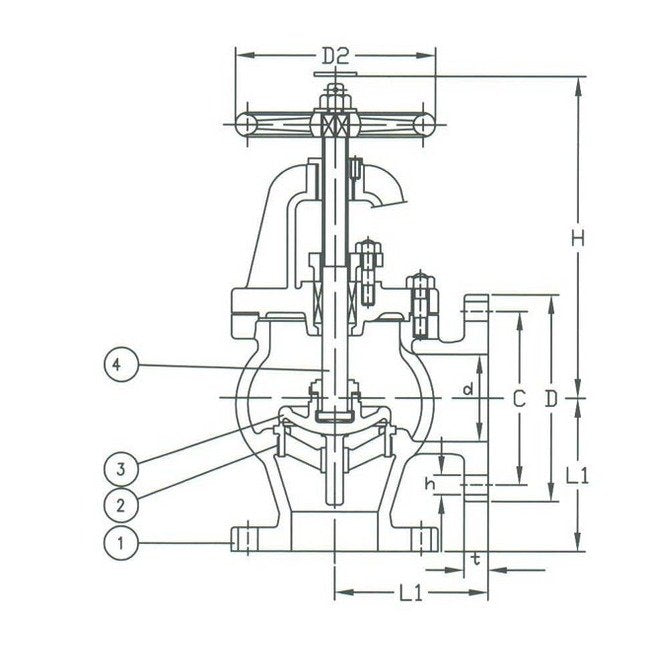

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
3.88 in | 99 mm
Specifications Connection
Flanged Drilled
Specifications D
5 in | 127 mm
Specifications D2
5.00 in | 127 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
9.00 in | 229 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
3.25 in | 83 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
1-1/2"
Specifications Stem Material
Brass
Specifications T
0.44 in | 11 mm
Specifications Weight
22 lb | 10.0 kg
