Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular - 2"
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular - 2"
SKU:VAL-556f47
Durable Class 150 Bronze Angle Valve with Bolted Bonnet - Reliable performance and compliance with ANSI standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular - 2"
$249.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve, Bolted Bonnet - OS&Y, Regular - 2"
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet is a durable and reliable valve suitable for various applications. Constructed with high-quality materials including bronze body, brass seat, and a choice of bronze or stainless steel disc, this valve ensures longevity and efficient performance. With compliance to ANSI B16.10 standards for face-to-face dimensions and ANSI B16.24 Class 150 flange specifications, it meets the stringent requirements of institutional and government procurement. The valve features a handwheel actuator for easy operation and precise control, making it a dependable choice for industrial use.
Ready to Grow Without Cash Flow Constraints?

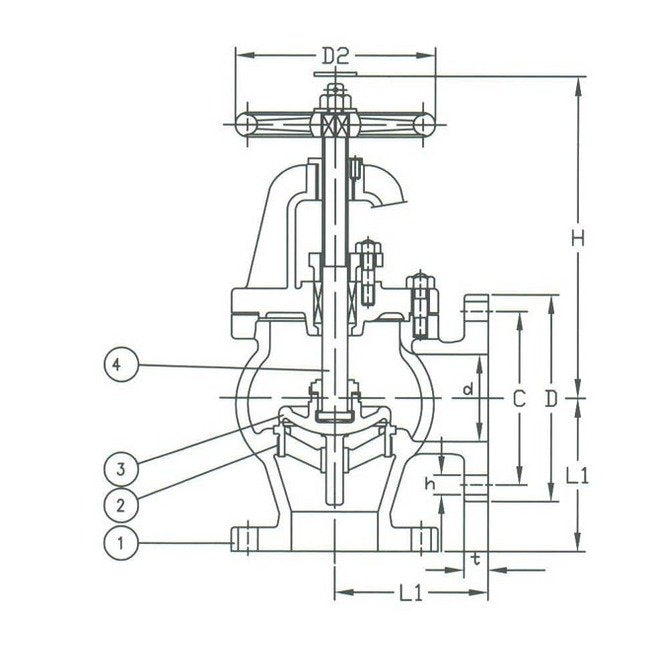

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
4.75 in | 121 mm
Specifications Connection
Flanged Drilled
Specifications D
6 in | 152 mm
Specifications D2
6.00 in | 152 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
11.12 in | 282 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
4.00 in | 102 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2"
Specifications Stem Material
Brass
Specifications T
0.50 in | 13 mm
Specifications Weight
33 lb | 15.0 kg
