Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y - Regular 3/4"
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y - Regular 3/4"
SKU:VAL-7be4cc
High-quality Class 150 Bronze Angle Valve - Ideal for various applications, ANSI standards compliant.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y - Regular 3/4"
$69.99
Quantity: 1
Claim Your Seller Account
Class 150 Bronze Angle Valve - Bolted Bonnet, OS&Y - Regular 3/4"
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Angle Valve with Bolted Bonnet and OS&Y design is a reliable choice for various applications. Crafted from durable Bronze and Stainless Steel materials, this valve ensures longevity and performance. Meeting ANSI standards for Valve connections and sizing, this product offers Hydraulic Inspections at 350 PSIG for the shell and 225 PSIG for the seat. With precise dimensions according to ANSI B16.10 and ANSI B16.24 Class 150 flanges, this valve provides exceptional quality and functionality for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?

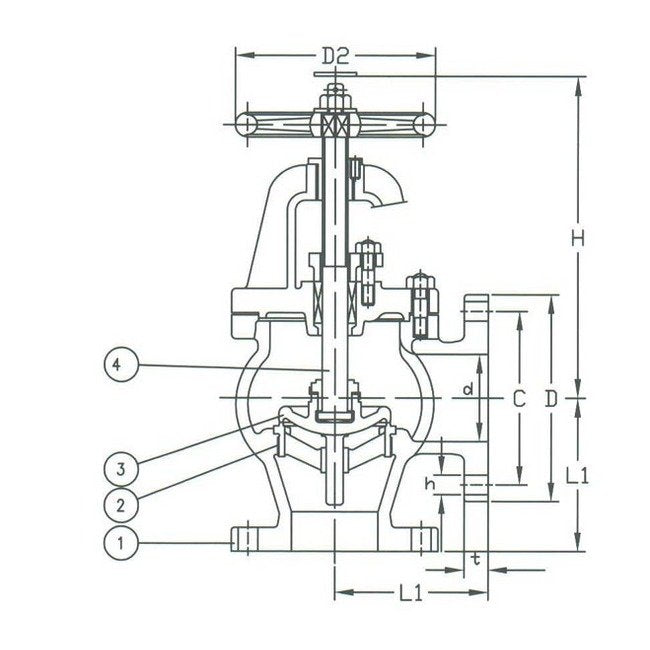

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
2.75 in
Specifications Connection
Flanged Drilled
Specifications D
3.88 in
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
0.63 in | 16 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
2.50 in
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
3/4"
Specifications Stem Material
Brass
